INTERNATIONAL SUMMER ASTROSCHOOL
"ROZHEN 2003", BULGARIA
Observational program
Observation of the Moon, planets and NEOs
comets and asteroids. CCD observations of nebulae.
Necessary preparation before the observation
1.Introduction to Schmidt telescope and CCD camera
Brief information about the Schmidt telescope 50/70: The diameter of
the objective mirror of the Schmidt telescope is 70 cm. The correction
lens that compensates the aberration of the mirror has a diameter of 50
cm. The focal distance is 172 cm. The telescope has a 5-cm finder and a
20-cm guide.

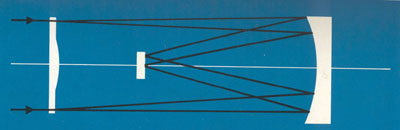

Scheme of a Schmidt telescope:
Equatorial assemble: a circle of right accession and declination. A
formula for estimation of t:
t = s a,
where s is stellar time and a
is right accession.
2. Introduction to the software of the camera and the star catalogue
Guide 7
The software of the camera is CCDops.exe. Look at the instructions
how to use the camera
3.Introduction to the objects that you are going to observe. Preparation
of an observing plan for the night.
Observational program
1. Observation of the planets Jupiter and Mars
2. Observation of the Moon
3. Observation of NEOs
No |
Objects
|
D |
Magnitude |
Note |
1
|
The Moon |
|
-7.4
|
|
2
|
Jupiter |
|
-1.7
|
|
3
|
53P/Van Biesbroeck |
1.714 |
13.8
|
|
4
|
65P/Gunn |
1.456 |
11.7
|
|
5
|
66P/du Toit |
1.123 |
13.8
|
|
6
|
116P/Wild 4 |
1.640 |
13.2
|
|
7
|
2003 ΚΠ2 |
1.193 |
18.3
|
|
8
|
2003 ΚV2 |
1.071 |
18.2
|
|
9
|
Mars |
|
-1.5
|
|
Moon Phases and structures
Object:
........
a
=
h
m
s b
=
°
Observer:
.........
Location: NAO Rozhen
( l = 1° 38 f =
41 ° 41)
Type of instruments: ....................
........................................................................
Date:
Date:
Note: ............................................................................................................................................
.....................................................................................................................................................
.....................................................................................................................................................
.....................................................................................................................................................
Mars
Object:
........
a
=
h
m
s b
=
°
Observer:
.........
Location: NAO Rozhen
( l = 1° 38 f =
41 ° 41)
Type of instruments: ....................
........................................................................
Date:
Date:
Note: ............................................................................................................................................
.....................................................................................................................................................
.....................................................................................................................................................
.....................................................................................................................................................
Jupiter and its moons
Object:
........
a
=
h
m
s b
=
°
Observer:
.........
Location: NAO Rozhen
( l = 1° 38 f =
41 ° 41)
Type of instruments: ....................
........................................................................
Date:
Date:
Note: ............................................................................................................................................
.....................................................................................................................................................
.....................................................................................................................................................
.....................................................................................................................................................
Observation of the constellations
Observational tasks
1. Visit to the 2-m telescope from 22h to 23h.
2. Observations of the following constellations: Draco, Corona Borealis,
Hercules, Cygnus, Lyra, Aquila, Ophiuchus, Scorpius, Ursa Major, Ursa Minor,
Andromeda, Perseus, Cepheus, Cassiopeia from 23h to 24h
3. Observations of double stars: b
Cygnus, 61 Cygnus, e Lyra, n
Draco, h Cassiopeia, g
Andromeda, h Perseus, a
Canes Venatichi, a Hercules, x
Hercules, b Perseus, b
Lyra, RZ Cassiopeia.
4. Observations of meteors.
5. Observations of variable stars - Algol in the constellation
Perseus, and RZ Cassiopeia.
Necessary preparation for the day
You have to:
· Find the constellations Draco, Corona Borealis, Hercules, Cygnus,
Lyra and Aquila, Ophiuchus, Scorpius, Ursa Major, Ursa Minor, Andromeda,
Perseus, Cepheus and Cassiopeia on the star map.
· Find the brightest stars: b Cygnus,
61 Cygnus, e Lyra, n
Draco, h Cassiopeia, g
Andromeda, h Perseus, a
Canes Venatichi, a Hercules, x
Hercules, b Perseus, b
Lyra, RZ Cassiopeia.
· Read the instructions for visual observation of meteors.
· Read the instructions for observation of variable stars and to look
at the observational form and the map for the variable star Algol
and RZ from Cassiopeia.
Observational tasks
1. Visit to the 2-m telescope from 22h to 23h.
2. Observation of the following constellations: Draco Corona Borealis,
Hercules, Cygnus, Lyra, Aquila , Ophiuchus, Scorpius, Ursa Major, Ursa
Minor, Andromeda, Perseus, Cepheus, Cassiopeia:
Look at the configuration of the constellations, and find the brightest
and the faintest star; Find the number of the stars that you can see with
naked eye in each constellation and fill in the constellations observing
form.
Constellation observing form
Observer:
Location: NAO Rozhen ( l
= 1° 38 f = 41 ° 41)
Type of instruments: ....................
........................................................................
Constellations |
Brightest star, designation |
Faintest star, designation |
Number of
stars in the
constellation |
Draco (Dra) |
|
|
|
Corona Borealis (CrB) |
|
|
|
Hercules (Her) |
|
|
|
Cygnus (Cyg) |
|
|
|
Lyra (Lyr) |
|
|
|
Aquila (Agl) |
|
|
|
Ophiuchus (Oph) |
|
|
|
Scorpius (Sco) |
|
|
|
Ursa Major (UMa) |
|
|
|
Ursa Minor (UMi) |
|
|
|
Andromeda (And) |
|
|
|
Perseus (Per) |
|
|
|
Cepheus (Cep) |
|
|
|
Cassiopeia (Cas) |
|
|
|
Observations of double stars
A huge part of all stars on the sky are grouped in pairs. Not all stars
that we can see are connected to each other. Some of them are accidentally
projected on the sky hemisphere as stars situated near each other, but
this is just the way we see them. Such stars are called optical binaries.
For example: z from Ursa Major - Mitsar
and Alkor. There are stars that are actually near each other in space.
Such stars are called true binaries. This is because they are connected
in a double system with gravitational forces. Under the influence of gravity
they turn around a common centre of gravity and the more massive star is
called the main star, and the other one is called a satellite star.
Observational classification of double stars:
1) Visual double stars - these are double systems in which stars can
be seen as separate in a telescope, for example: Mitsar ΐ (2m.4)
and Mitsar Β (4m.0). There are about 2000 visual double systems.
2) Eclipsing binaries - they cannot be seen as separate in a telescope.
The change of the brightness of one of the stars is due to a periodical
eclipse of one the stars over the other. For example: b
Perseus
3) Spectral binary stars - These stars are double because there is
a change in their spectrum- one can observe a periodical shift of spectral
lines.
Observe the following interesting double stars: b
Cygnus, 61 Cygnus, e Lyra, n
Draco, h Cassiopeia, g
Andromeda, h Perseus, a
Canes Venatichi, a Hercules, x
Hercules. Fill in the stars observing form.
Star observing form
Observer:
Location: NAO Rozhen ( l
= 1° 38 f = 41 ° 41)
Type of instruments: ....................
........................................................................
Star |
Star magnitude |
Colour of components |
b Cygnus |
|
|
61 Cygnus |
|
|
e Lyra |
|
|
n Draco |
|
|
h Cassiopeia |
|
|
g Andromeda |
|
|
h Perseus |
|
|
a Canes Venatichi |
|
|
a Hercules |
|
|
x Hercules |
|
|
b Perseus |
|
|
b Lyra |
|
|
RZ Cassiopeia |
|
|
Observation of meteors (2 observational periods υ 20
min)
1) Methods for observation of meteors.
2) Sky maps
3) Observing forms
Observation of variable stars
Steps:
· Find the star on the sky. Use star atlases or the sky maps of AAVSO.
· Choose the stars for comparison and find them on the sky. Choose
several pairs of stars that you will use for comparison for example 3
pairs.
· Give an evaluation of the brightness of the variable star.
Methods for evaluation:
1) Method of Argelander
We observe consequently the star for ΰ and the variable star
v.
If we see that they do not differ from brightness we write down on the
form ΰ = v. If, after a long period of comparing, we see
that ΰ is less bright, we write down ΰ1v and say that
a
is one degree brighter than v.
If you see a difference immediately after you have looked at
the stars, then we write down that the evaluation is ΰ2v. A larger
difference in the brightness is evaluated as ΰ3v, ΰ4v, ΰ5v.
After having made this comparison with the star a, we choose other
3 stars and the evaluation is repeated.
2) Method of Pickering
You choose 2 stars for comparison one of them is brighter and the
other fainter than the variable star. The interval of brightness between
the stars is divided into 10. Observing carefully first the variable star
and than the stars for comparison, you should determine the interval from
degrees of brightness, for example: a1v9b, a3v7b, a8v2b
or in the common type apv(10-p)b. The brightest star is always written
as the first one.
Determination of star magnitude of variable stars using the method
of Pickering.
Example: The star magnitude of the brighter star a used for comparison
is ma = 3.0
The magnitude of the fainter star b used for comparison is mb
= 3.6
The received value is: ΰ4v6b
DP = ma - mb=
3.6 3.0 = 0.6 (here we subtract the magnitudes)
P = 0.6 : 10 = 0.06 (divide DP
of 10)
Look at the first value - ΰ4v means that the star magnitude
of the bright star a is 4υ0.06 brighter than the magnitude of the
variable star.
mv= ma + 4x0.06 = 3.0 + 4x0.06
= 3.0 + 0.24 = 3.24
mv = 3.24
Look at the second value v6b means that the magnitude of the
fain star b is 6υ0.06 fainter than the magnitude of the variable
star.
mv = mb - 6x0.6 = 3.6 - 6x0.06
= 3.6-0.36 = 3.24
mv = 3.24
Repeat this calculation for the other pairs of stars, and you will receive
the evaluation of the magnitude of the variable star.
Variable star observing form
Observer:
Location: NAO Rozhen ( l
= 1° 38 f = 41 ° 41)
Type of instruments: ....................
........................................................................
Reference Stars (RS) |
Magnitude |
No Catalogue |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
N |
Date |
UT |
Estimate |
mv |
JD |
Notes |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Observational program
1.Task: Observation of meteors (3 observational periods υ 20 min):
1) Read about the method for observation of meteors
2) Use star maps
3) Fill in the observing forms
2. Task: Observation of variable stars
· b Perseus
· RZ Cassiopeia
· r Perseus
Look at the maps of the variable stars, find the variable stars on
the sky, give evaluation of the brightness of the variable stars and fill
in the variable stars observing forms.
Observation of Messier's deepsky objects
Necessary preparation before the observation
Look at the objects from the Messier catalogue and see which objects
you are going to observe.
· Find the constellation, in which the Messier objects are situated.
· Creation of an observational program for making photographes, taking
into consideration the fact when the objects rise and how much time you
have to photograph them
· Introduction to working with a telescope. Installation of the telescope
on its stand.
· Observation of the Sun that will be projected on a piece of paper.
· Preparation of the photo cameras
Taking photographs of the night sky
When one photographs celestial objects using a telescope and a camera,
one should know the field of its vision. For example, if you have a lens
of an amateur photo camera with focus distance 50 mm of a cadre 24υ36 mm,
then it will photo a field from the sky of approximately 30° υ 40°,
i.e. this means more than 1000 square degrees.
It is useful for you to know the following characteristics:
1.Dimension of the photograph it is used to determine the length
of the object on the negative. If a is
angular size of the object ( in arc minutes), F focus distance
of the lens, then the linear size of the lens is
d [mm} = a * F[mm] * sin1,
and sin1 = 1/3437,75 = 0.000291
Example: The angular diameter of the Moon is 31. The linear diameter
of the moon on a photograph will be:
d [mm] = F [mm] * 0.009 = F [mm] * 1/111, i.e. about 1/100 from
the focus distance.
Suggested Messier objects:
Star clusters- Μ10, Μ12,Μ2, Μ13, Μ34
Nebulae Μ57, Μ27, Μ8
Galaxies Μ51, Μ81, Μ31, Μ33,
Deepsky objects observing form
Observer:
Location: NAO Rozhen ( l
= 1° 38 f = 41 ° 41)
Type of instruments: ....................
........................................................................
Object, constellation |
Date (hh:mm) |
Telescope |
Type of object |
Drawing |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Deepsky objects Photographer's form
Observer:
Location: NAO Rozhen ( l
= 1° 38 f = 41 ° 41)
Type of instruments: ....................
........................................................................
Object |
Photographic
camera |
Camera's lens |
Date, UT,
hh:mm |
Exposure
time |
Type and sensibility of the film |
Note (Cloudy, Windy, Moon) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Home * Schedule
* Participants
* Gallery * Results
|
