The ratio of adjacent elements of the Fibonacci sequence approaches the irrational number =(1+sqrt(5))/2 in the limit. The number, is the solution to the algebraic equation

1 + x = x²

As a result has the property

1+ = ²

Therefore, the double geometric sequence

is the Fibonacci sequence since it has the property that each term is equal to the sum of the earlier two terms and also the ratio of each term to the earlier term is equal to the golden mean tau. It is the only geometric series which is also a Fibonacci sequence (Kappraff, 1992References). The Fibonacci numbers can be represented geometrically in polar coordinates in two dimensions by the equiangular spiral R_oR₁R₂R₃R₄R₅... drawn with origin O, with lengths of successive radii OR_o, OR₁, OR₂, ......... and corresponding spiral segments R_oR₁, R₁R₂, R₂R₃, ...... following Fibonacci mathematical sequence (Figure 5).

R_oR₁ may be considered to be the tangent at R_o to the circle with center O and radius OR_o. The angle R₁R_oX equal to alpha() which the tangent makes with the arc XR_o is the crossing angle of the spiral R_oR₁R₂...

The initial radius OR_o equal to R grows to OR₁ equal to R + dR after an angular turning R_oOR₁ equal to d(theta ()) . The incremental growth dR is equal to the length R₁X in Figure 5.

FIGURE 5

Therefore
tan(alpha())=R₁X/AR_o

XR_o = Rd(theta) for the arc XR_o of circle with center O and radius OR_oequal to R.

tan (alpha()) = alpha in the limit for small values of alpha.
Therefore

or

Integrating for growth of radius from r to R associated with angular turning from 0 to theta,

or

Geometrical consideration for generation of the Fibonacci spiral in three dimensions specify a constant angular turning d(theta) equal to 1/tau between successive radii and therefore a constant crossing angle, also equal to1/tau.The Fibonacci equiangular spiral is then given by the relation

The angle subtended at the center between two successive radii is therefore equal to the golden angle

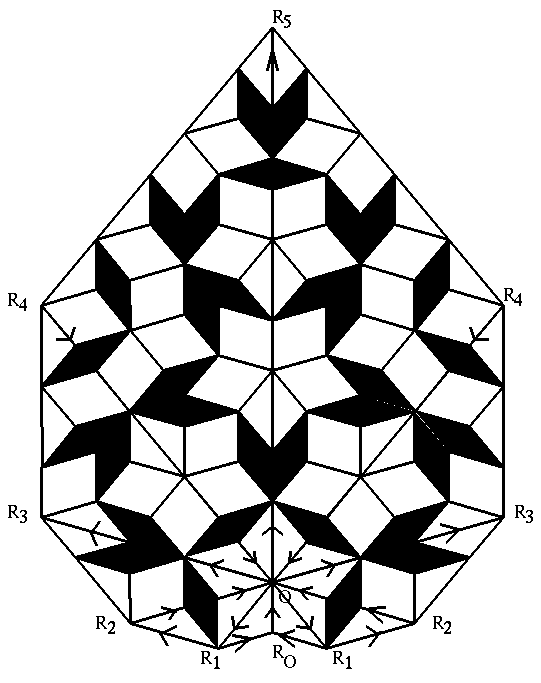

The Fibonacci equiangular spiral as shown in Figure 6 has intrinsic internal structure of the quasiperiodic Penrose tiling pattern (see Section 2.6) and associated long-range spatial and temporal correlations.

FIGURE 6

The Fibonacci spiral is traced with mathematical precision in nature in the dynamical growth processes of plants as seen in the geometrical placement on the shoot, of primordia, which later develop into the various plant parts. In a majority (92%) of plants studied world wide, successive primordia always subtend angle equal to the golden angle at the apical center (Jean, 1994References). Primordia placement in space and time may therefore be resolved into the precise geometrical pattern of the quasiperiodic Penrose tiling pattern.
