Resonant Loop Antenna

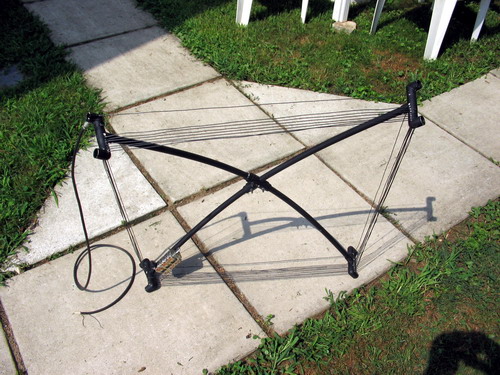

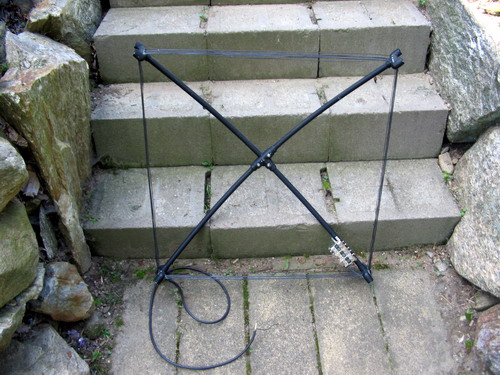

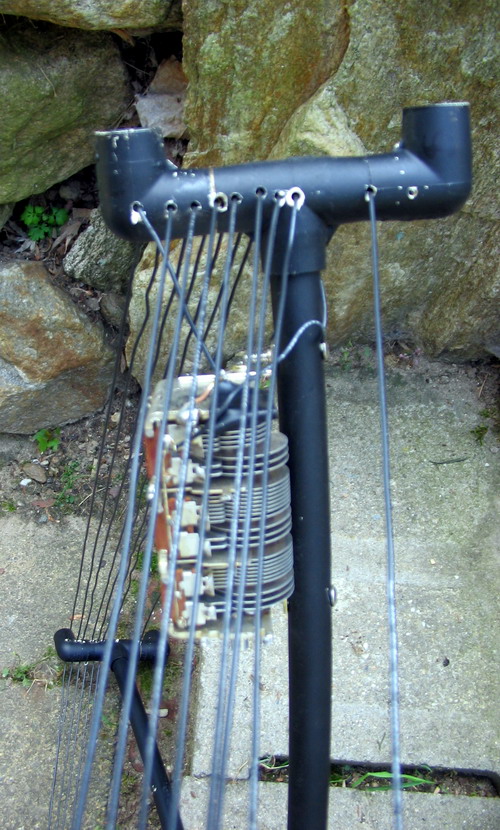

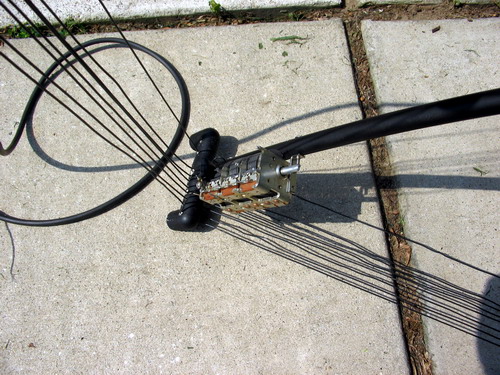

Simply put: It's a resonant loop of spaced windings (spaced to keep stray capacitance low). I'm guessing, but I figure there is 56 feet of wire. The coil is wired in parallel with a variable capacitor (usually a 15 - 365 pF). This parallel circuit should resonate somewhere from 0.5 to 1.7 Mhz (500 - 1700 KHz).

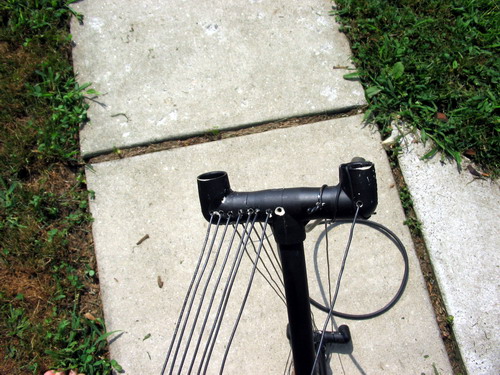

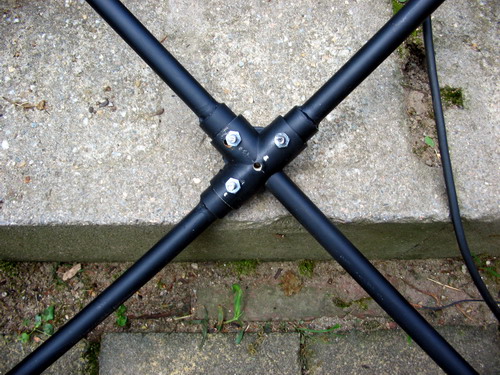

Depending on the components, you may have to add or remove wire to put the resonant limits within the band of your choice. I had to add more cap to cover the loop's intended purpose. But, experimentation is easy and educational. The nice thing about PVC over the more popular wood frame is the spring it has, thus keeping the windings fairly tight.
Use an ordinary portable AM radio placed near the loop to fine tune the windings. Check the peaking at the low and high ends of the b'cast band ... it's quite amazing actually. The antenna can be turned and tilted to peak a station or null and interfering one.

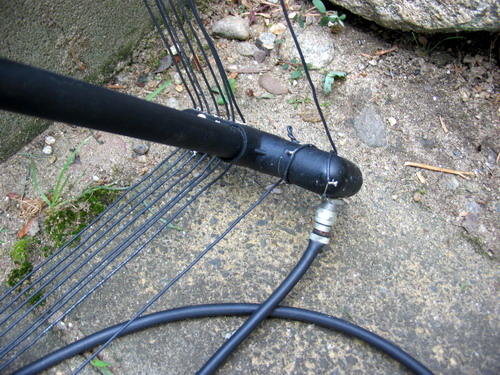

The pick-up loop is soldered to an "F" fitting. make this a one-turn loop and space it as shown or experiment, before you make it permanant. With the pick-up loop, you can feed the low impedance input of a communications receiver. With a portable radio, just orient it, near the antenna, for best receiption of your selected station and don't use the pick-up winding connection.
Happy listening,
Bob, N1KPR
Feel free to copy info, but please give credit as necessary. July 31, 2005
