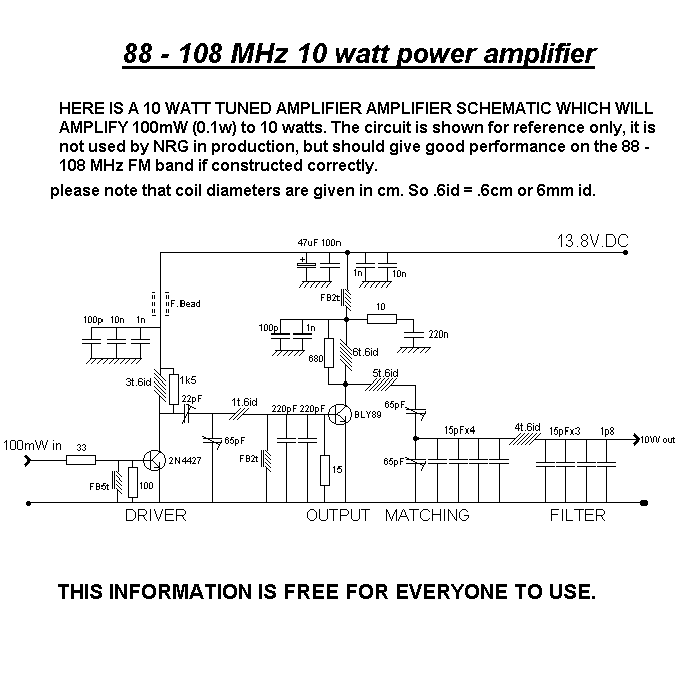

10 Watt Amp schematic

This page includes some large-sized images - Please be patient as they are downloaded (5 Seconds Max @ 56k).
To download this image, Right click on it an select "Save Image As" (Internet Explorer Only, Netscape and other browsers vary).
