GlidArc for VOC destruction
(via sorption/desorption/electro-burning)
The bottom of this page To the welcome page
    1. sorption (on charcoal) of diluted VOC from a cold, polluted air, thermal desorption by nitrogen (~ 95 %) of a more concentrated VOC/N2 flow,
    2. mixing of the flow #2 with an enriched air (~ 40 % O2) and obtaining a much richer VOC/air mixture, still below its explosive/flammability limit,
    3. GlidArc I or II assisted combustion of the #3 mixture,
    4. removal of combustion products by washing or a specific absorption stage,
    5. mixing of unburned VOC (after step #4 or #5) with initial stream of the polluted air; return à #1.

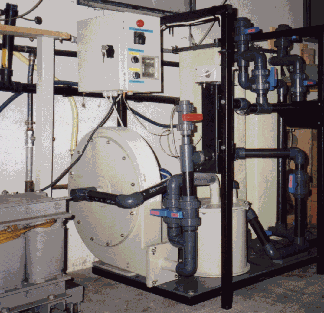

Pilot plant with 36 electrodes for 3000 m3/h air cleaning; can also process directly any VOC flow without sorption/desorption step (GlidArc I structure).
