The whole package, showing both heavy duty power supplies, main unit, telephone attachment, receipt printer/signature capture pad, and all cabling. (33.91K)

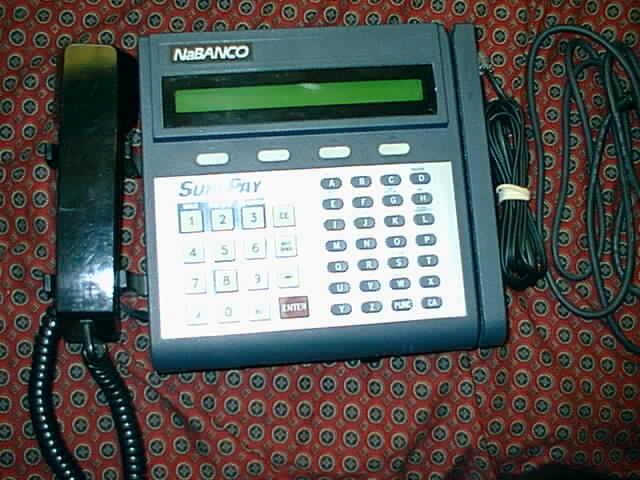

A closeup of the main unit and a nice view of the full alpha and numeric keypad. (56.61K)

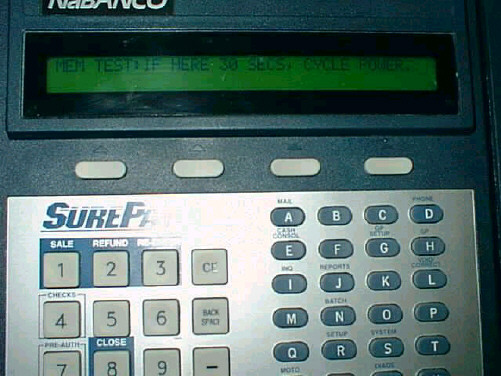

On first powerup, the unit tests its internal memory. (Click to enlarge) (73.03K)

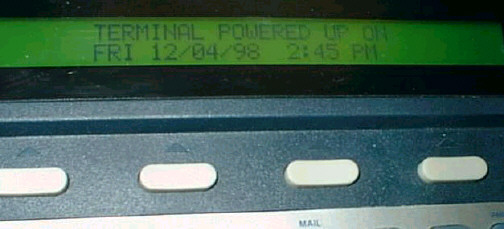

After sucessful powerup, the terminal announces that it is ready to process cards. (37.28K)

A view of the rear of the unit, showing the vast array of expansion ports and connectors as well as the volume control. (53.42K)

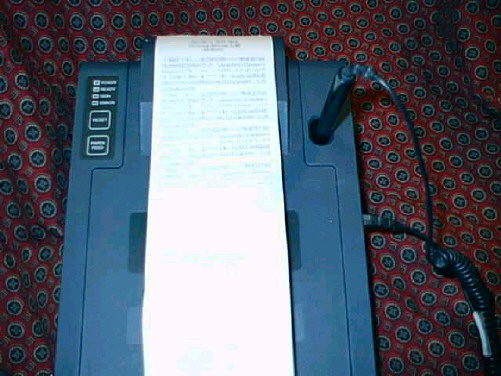

The output after a printer test. (75.33K)

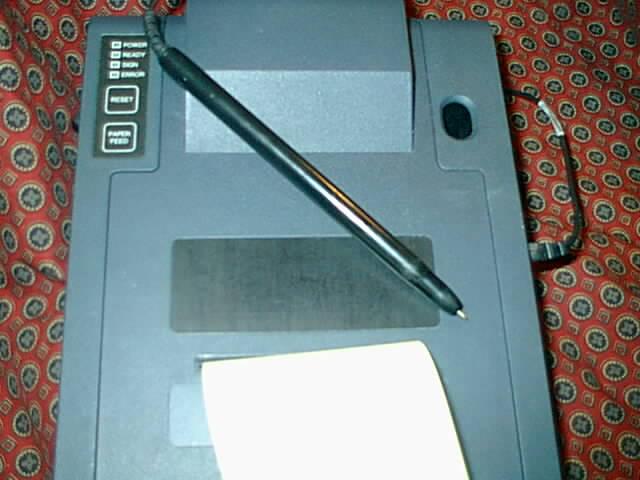

The signature capture pad and special pen.
 (39.60K)

The connection of the pen sensor to the side of the printer. (37.36K)

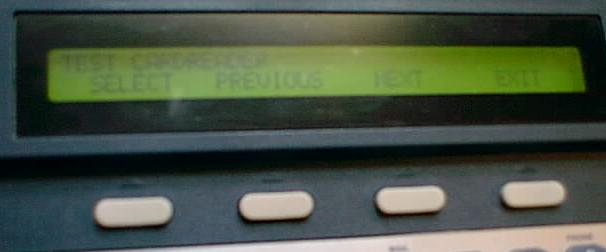

The 'test card swipe reader' screen prompt.
 (16.65K)

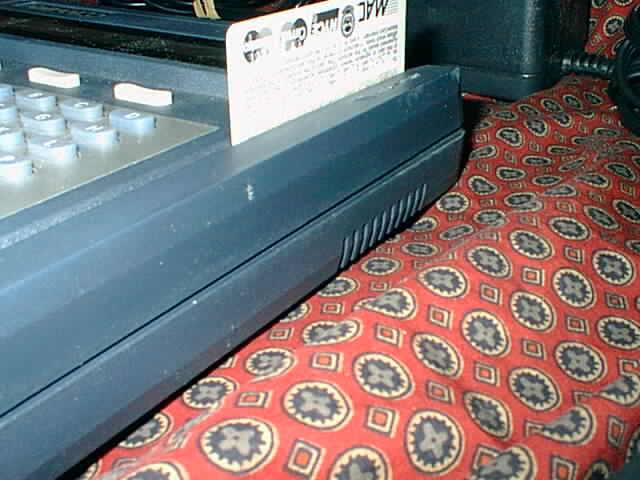

A card ready to swipe through the cardreader. (49.02K)

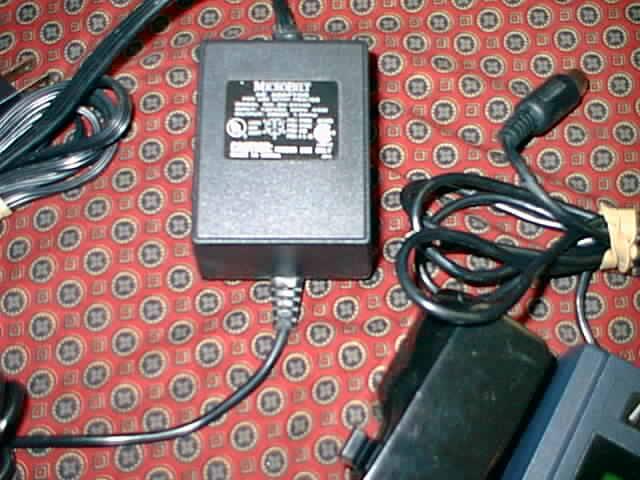

The main unit's heavy uty, multi-voltage power supply. (55.33K)

The printer's heavy duty power supply. (54.56K)
