Rudder Controls
Rudder controls consists of the installations of the rudder pedals, the conduit for the rudder cable and the rudder link fabrication and assembly. Also included in the assembly is the rudder cable swaging. I think the instructions are pretty good for the assembly of all of the components. There is one typo however in the instructions. The manual calls for part number 910011 nicopress sleeves and it should call for part number 910013 sleeves. It is correctly stated in the parts list. Below are photos of the various assemblies.

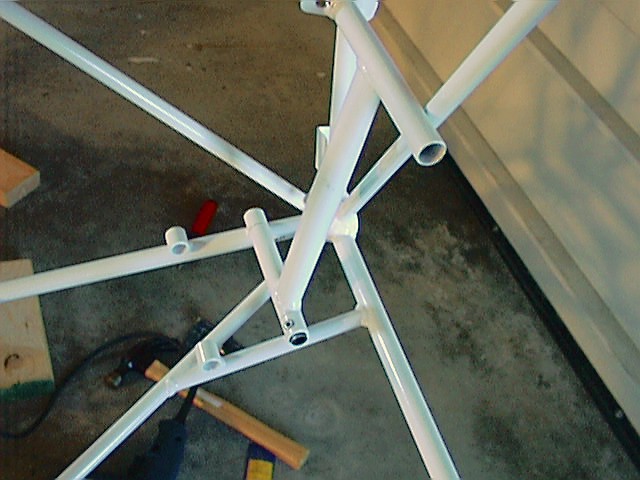

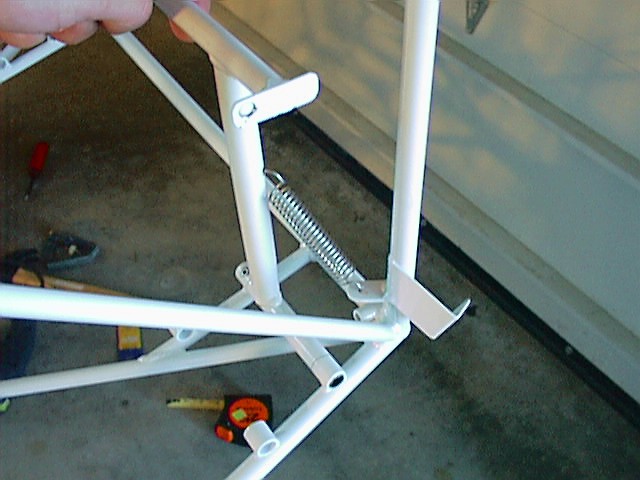

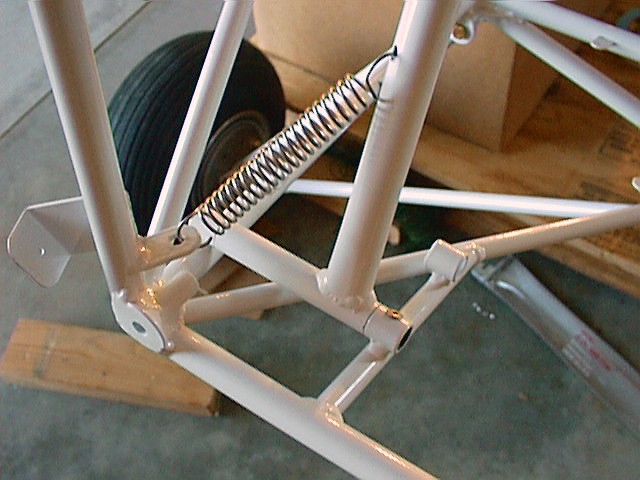

The Rudder Pedals

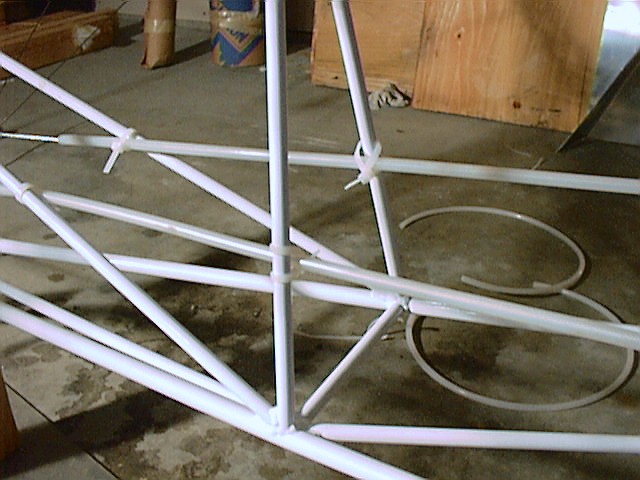

Cable Conduit Ties. My very good friend Jeff Orear is shown here helping attach cable ties. Jeff is currently building an RV-6. Jeff is the virus that first infected me with radio control modeling and flying. He later infected me with the building bug! A few more like me and Jeff will be an ace!

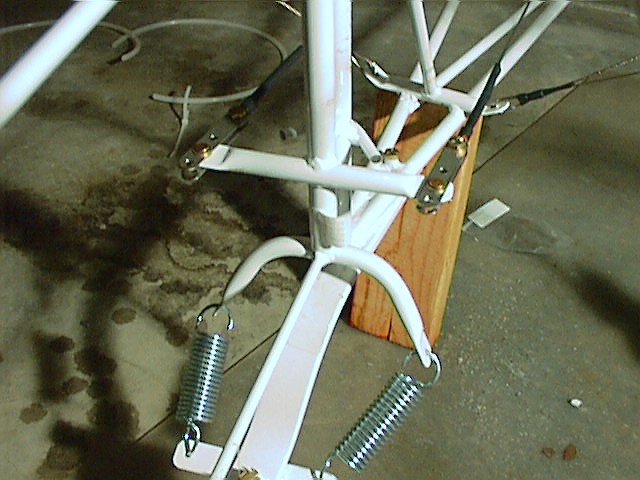

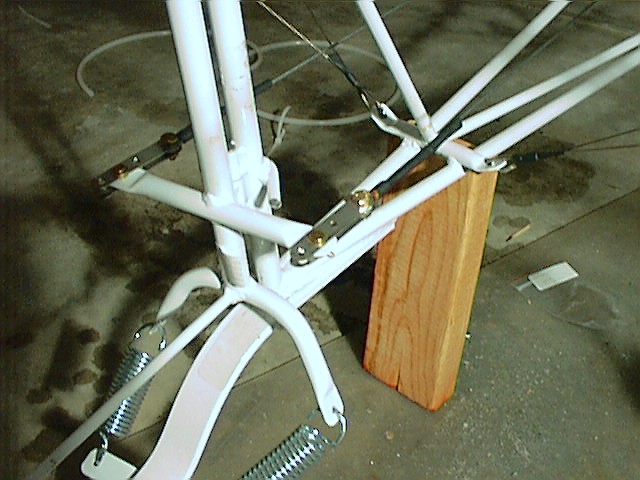

Rudder Cable Attachment
