The National Atomic Museum Titan II
Exhibit Page 2

Photos by Stephen  Sutton

Here's a look at the Titan II exhibit at the National Atomic Museum Albuquerque, NM. Photos were taken on 21 Feburary 1999.

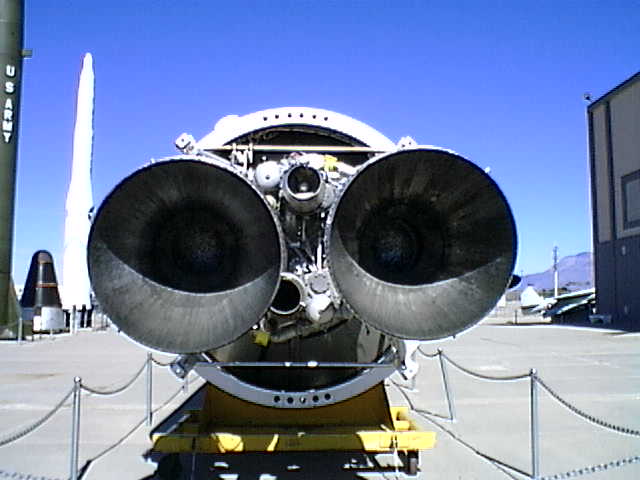

	Stage I LR87-AJ-5 Rocket Engine		Thrust Chamber Assembly
	Thrust Chamber using Liquid propellants, Aerozine-50 and nitrogen tetroxide		Turbopumps and Super Heater assembly

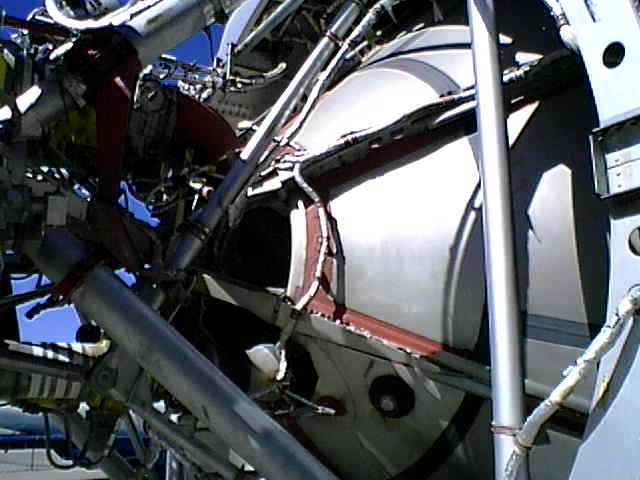

	Super Heater Assembly		Side View of LR-87-AJ-5
	Titan II ICBM		Gas Cooler

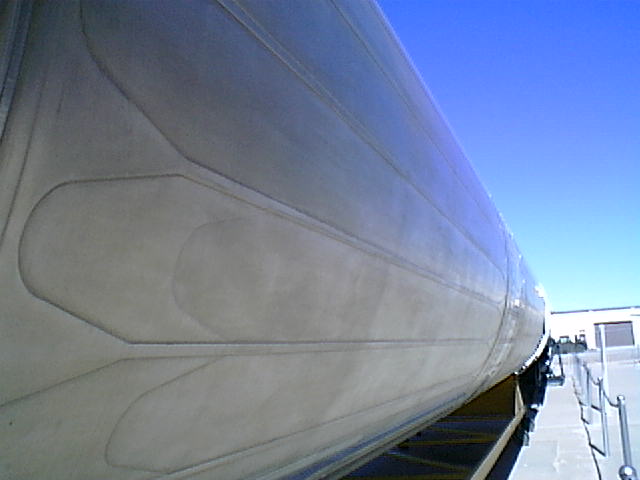

	Thrust Ring Mount		Stage I Fuel Tank

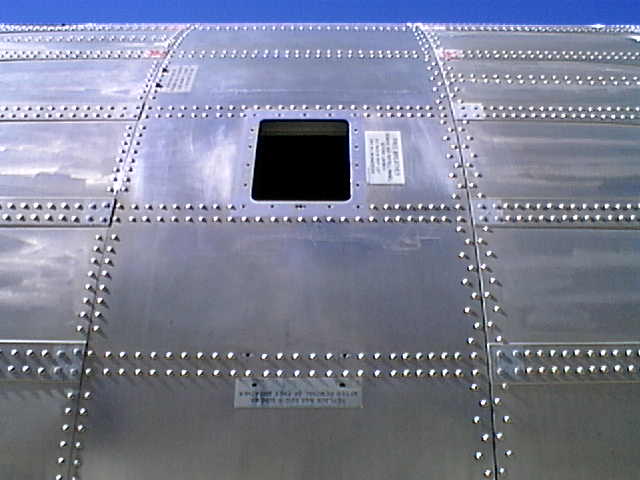

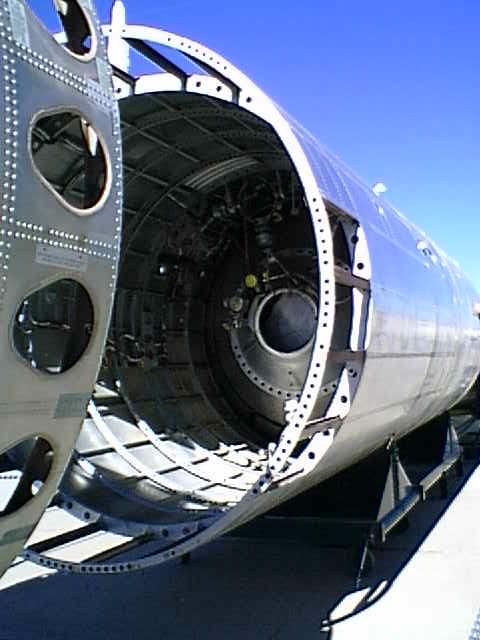

	Stage I Access Panel to access  fuel tank Manhole cover		Stage I and Stage II
	Titan II display info		Titan II Display Photo

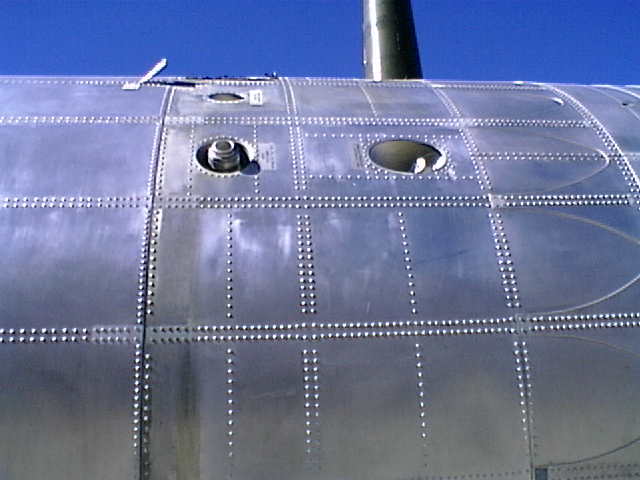

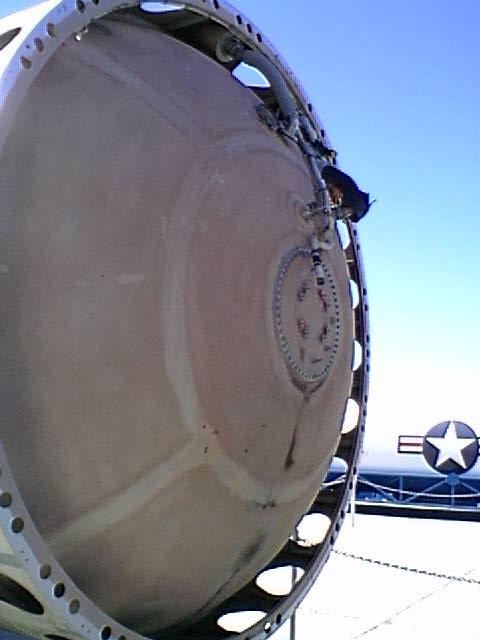

	Titan II Stage I Oxydizer Manhole cover		Refuel/Defuel Couplings
	Warhead Display Info		RV Display Photo

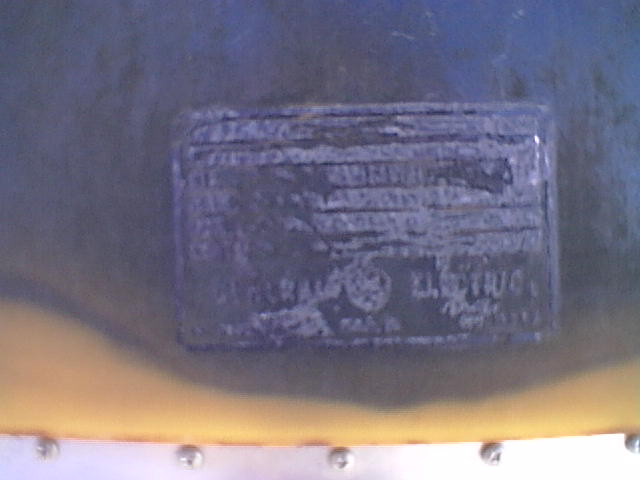

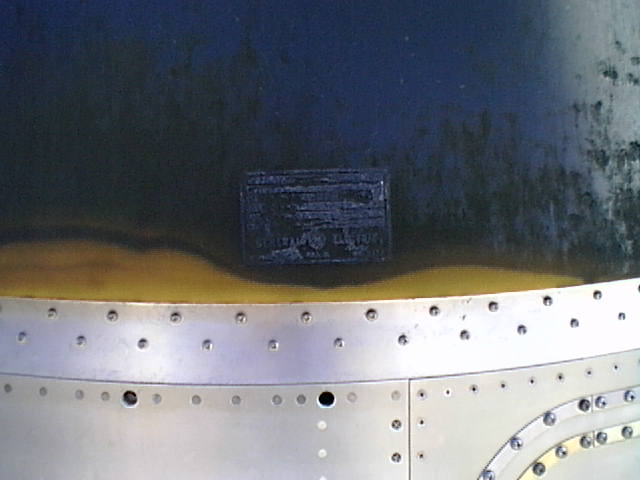

	Remnants of General Electric Placard on Re-entry Vehicle		Everyone who worked on these RV's saw this placard, with General Electric "G.E. We Bring Good Things to Living"

---
