Type 053H2G (Jiangwei) Class Guided Missile Frigate
Displacement: 2180 ton
Length: 112 m
Beam: 12.4 m
Drought: 4.3 m
Crew: 170
Speed: 25 knots
Range: 4000 miles at 18 knots
Missiles: SSM - 6 YJ-1 (Eagle Strike) (C-801)(2 triple) launchers; SAM - 1 HQ-61 sextuple launcher
Guns: 2 - 100 mm / 56 (twin); 8 - 37 mm / 63 (4 twin)
A/S mortars: 2 RBU 1200; 5-tube launchers
Decoys: 2 SRBOC Mk 33 6-barrelled launchers; 2 China 26-barrelled launchers
Radar: Air/surface search - Rice Screen; Fire control - Sun Visor; 2 Rice Lamp; Navigation - Fin Curve
Sonars: Hull-mounted Echo Type 4
Helicopters: 1 Harbin Z9A (Dauphin)

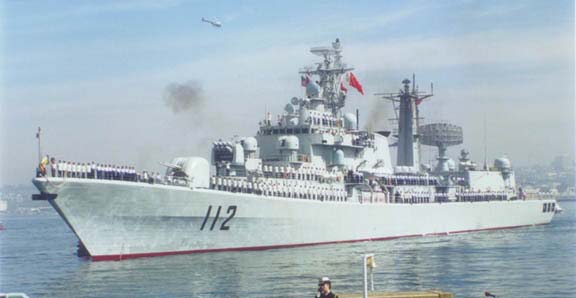

Type 052 (Luhu) Class Guided Missile Destroyer
Picture taken during PLAN's first ever visit to the U.S. mainland. Photographed by Oliver Gu.
Specifications:
Displacement: 4200 ton
Length: 145 m
Beam: 15.2 m
Drought: 5.1 m
Crew: 280
Speed: 30 knots
Missiles:
SSM - 8 YJ-1 (Eagle Strike) (C-801);
SAM - 1 Thomson-CSF Crotale octuple launcher
Guns: 2 - 100 mm / 56 (twin); 8 - 37 mm / 63 (4 twin)
Torpedoes: 6 - 324 mm Whitehead B5 15 (2 triple) tubes; Whitehead A 244S
A/S mortars: 2 FZF 2500 launchers
Decoys: 2 SRBOC Mk 33 launchers ; 2 China 26-barrelled launchers
Radar:
Air search - Rice Screen, 3D; Hai Ying;
Air/surface search - Thomson-CSF Sea Tiger;
Fire control - Type 347G; 2 Rice Lamp
Sonars: Hull-mounted VDS
Helicopters: 2 Harbin Z9A (Dauphin)
Jianghu II (Type 053) Class Guided Missile Frigate
Displacement: 1820 ton
Length: 103 m
Beam: 10.8 m
Drought: 3.1 m
Crew: 200
Speed: 26 knots
Range: 4000 miles at 15 knots; 2700 miles at 18 knots
Missiles: SSM - 2 HY-2 (C-201) (2 twin) launchers
Guns: 1 - Creusot Loire 3.9 in (100 mm) / 55; 8 - 37 mm / 63 (4 twin)
Torpedoes: 6 - 324 mm ILAS (2 triple) tubes. Whitehead A 244S
A/S mortars: 2 RBU 1200; 5-tube launchers
Depth charges: 2 BMB-2 projectors; 2 racks
Decoys: 2 SRBOC Mk 33 6-barrelled launchers or 2 China 26-barrelled launchers
Radar: Air/surface search - MX 902 Eye Shield; Surface search/fire control - Square Tie; Navigation - Don 2 or Fin Cure; Fire control - Wok Won or Rice Lamp
Sonars: Hull-mounted Echo Type 5
Helicopters: 1 Harbin Z9A (Dauphin)
Houjian (Type 520) Class Missile Fast Attack Craft
Displacement: 520 ton
Length: 65.4 m
Beam: 8.4 m
Drought: 2.4 m
Crew: 75
Speed: 32 knots
Range: 1800 miles at 18 knots
Missiles: SSM - 6 YJ-1 (Eagle Strike) (C-801) (2 triple) launchers
Guns: 2 - 37 mm / 63 (twin) Type 76A; 4 - 30 mm / 65 (2 twin) Type 69
Radar: Surface search - Square Tie; Fire control - Rice Lamp
