A long time secret of winning professional racers, these
new racing fuel pumps are made specially for NOS by Weldon; a world leader
in aerospace and racing pump technology. These pumps are extremely durable
for long life and reliability and can support racing applications up to
1500 H.P. Each pump is completely rebuildable and is compatible with methanol.
Inlets and outlets are either -8AN or -10AN depending upon the pump. Fittings
& brackets are not included; 12V/15 amp.
Part #
Description
Flow Specs
WA2015-A
NOS/Weldon Fuel Pump
100 gph @ 100 psi
WA2025-A
NOS/Weldon Fuel Pump
170 gph @ 60 psi
WA2032-A
NOS/Weldon Fuel Pump
100 gph @ 85 psi
WA2033-A
NOS/Weldon Fuel Pump
100 gph @ 20 psi
WA2311-A
NOS/Weldon Fuel Pump
360 gph @ 45 psi

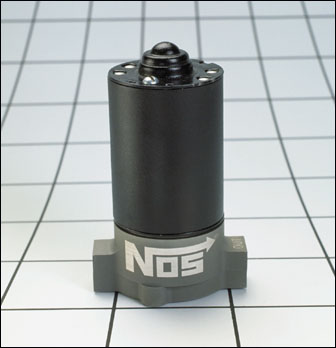

The New NOS Fuel Pump
(part # 15761)
The world’s first fuel pump designed and manufactured specifically
for use with nitrous systems. After testing all the other racing fuel pumps,
NOS has gone on to design a unique pump specifically for supplying nitrous
systems with fuel. In high horsepower Pro classes this pump would be used
to supply supplemental fuel for the nitrous system while a primary pump
supplies the carburetors. In street and sportsman classes, the NOS Fuel
Pump is capable of supplying both the nitrous system and the carburetors.
With a flow rate of 650 pounds per hour at 12 psi, this vane type pump
is perfect for use with any nitrous system, from single 4-barrel plates
to the biggest Foggers. The NOS Fuel Pump draws very little current (3-4
amps) and is built on a CNC machined billet base. Each NOS Nitrous Fuel
Pump comes complete with o-ring style -6 AN fittings, mounting bracket,
and detailed instructions.

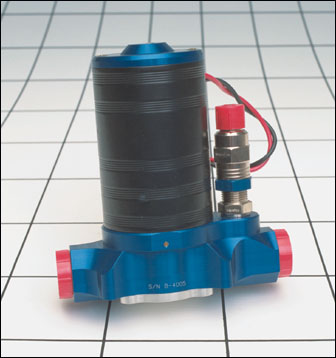

The New NOS Pro44 Racing Fuel
Pump
(part # 15766)
The NOS Pro 44 is engineered for the world’s most powerful Pro
Modified, Pro Street, and Pro Stock engines. With a higher flow rating
at operating pressure than the competition, the new NOS Pro44 Racing Pump
delivers enough fuel for virtually any gasoline fueled race engine and
most alcohol engines. This pump provides you the reliability that other
popular pumps lack. With no metal to metal contact inside the pump and
a Mil-Spec motor, you get a longer lasting pump that you can depend on
run after run. The new NOS Pro44 Racing Pump also runs quieter and keeps
the fuel cooler than competitive pumps. Other features include an adjustable
bypass that allows you to set fuel pressure out of the pump from 10 to
35 psi and CNC-machined billet construction. Fully compatible with both
gasoline and alcohol, the NOS Pro44 accepts -12AN fittings.
