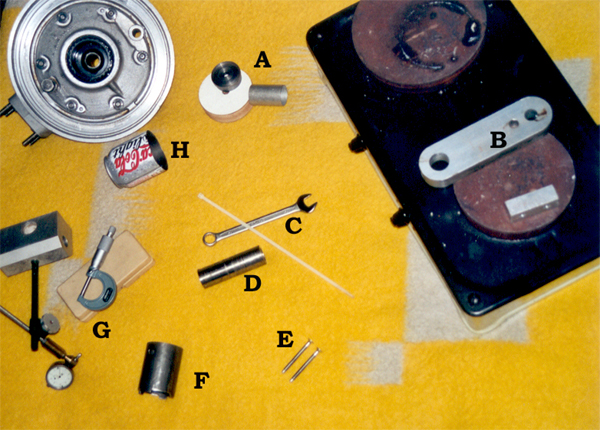

A Mandrels for pressing in the oilseals.

B Heating device with extra supports to position the parts.

C 14 mm ringspanner and ty-wrap to block the pinionshaft during meassurements.

D Steel tube for pressing in the pignon ball bearing, and together with the rearwheel axle to support the rearwheeldrive in a vice. 95mm long. Inside diameter is 20 mm. Outside diameter is 30 mm.

E M6 screws to pull the cover from the casing.

F Special spanner for the pignon clamping ring. 4 Studs of 6x4 mm equilly devided over the circumference. Outside diameter 52 mm. Length about 15 cm. Drill a hole in the other end, so you can turn the tool with a round bar.

G Meassuring tools, including clamp:

H Large oilseal protector, cut from an empty beverage can.
