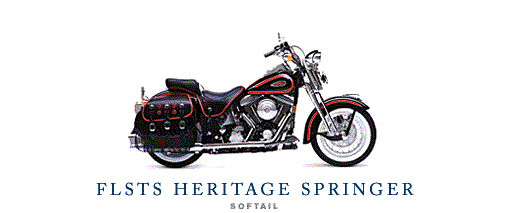

HERITAGE SPRINGER
SOFTAIL

Watch out for the Heritage Springer. It lures you in with looks from an era gone by. Then, its V-Twin engine and unique leather saddlebags promise you thrilling adventure. To make it more irresistible, this year's models come in black, with red or blue trim, or in the limited-edition 95th Anniversary colors.

Family1 Softail Length 94.0 in. [238.8 cm] Seat Height 25.75 in. [70.0 cm] Ground Clearance 5.0 in. [12.70 cm] Rake 31.25 degrees Trail 6.30 in. [16.0 cm] Wheelbase 63.07 in. [160.2 cm] Tire Size Front MT90B16 Rear MT90B16 Fuel Capacity 4.2 gal. (includes .4 gal. reserve) [15.91 L] Oil Capacity 3 qts. [2.8 L] Dry Weight 690 lbs. [323 kg] Gross Vehicle Weight Rating 1,135 lbs. [515.3 kg ELECTRICS Battery 12-volt, 20 amp-hour, 275 cca Charging 32-amp permanent magnet alternator (360 watts @ 3,000 rpm, 416 watts peak) with solid-state regulator Starting 1.2 kw electric with Bendix-type engagement Lights [As per country regulation] Headlamp Quartz halogen 55-watt low beam, 60-watt high beam Tail/stop lights 3/32cp Turn signal lights (self-cancelling) 32cp Running lights (except where prohibited by law) Front turn signals Indicator lamps High beam, neutral, oil and turn signals PERFORMANCE Mileage (per E.P.A. test regulations2) City 43 mpg Highway 55 mpg Braking at 60 mph [96.6 kph] Light load (200 lbs.) [90 kg] 161 ft. [48.3 m] Maximum load 177 ft. [53.9 m] Brakes (diameter x width) Front 11.5 in. x .20 [29.21 cm x 5.08 mm] Rear 11.5 in. x .23 [29.21 cm x 5.82 mm] Suspension travel Front 4.20 in. [10.66 cm] Rear 4.06 in. [10.31 cm] Lean Angle (per SAEJ1168) Right 28 degrees Left 28 degrees CHASSIS/STYLING/CONVENIENCE Frame Tubular mild steel Swing Arm Tubular mild steel Exhaust System Crossover duals Front Fork Chrome "Springer" style Wheels 16in. [40.64 cm] with wide whitewalls Instruments Electronic speedometer with odometer and resettable tripmeter Air Cleaner 8-inch round chrome with spun aluminum insert Handlebar FLH style Fringe Style Leather Saddlebags ~ Embossed Basket WEVV ~ Custom Solo Saddle Seat (Color Keyed) ~ Seperate Passenger Pillion (Color Keyed) with Chrome Hand Rail ~ Full-Length Operator Footboards ~ Heel-Toe Shift Lever ~ Chrome "Horseshoe" Oil Tank ~ Chrome Passing Lamps ~ Chrome Hub Cap Cover ~ Fishtail Mufflers Left and Right (US/Can. JPN. only) ~ Ribbed Transmission Cover ~ Chrome Rear Fender Supports ~ Black and Chrome Engine Trim ~ Barrel Keyed Ignition ~ Tombstone Tail Light ~ Nostalgic Looking Front Fender Running Light ~ Full Coverage Floating Front Fender ~ '40s Style Front Mounted Horn COLORS3 Vivid Black with Blue Seat, Saddlebag and Fuel Tank Panel Trim ~ Vivid Black with Red Seat, Saddlebag and Fuel Tank Panel Trim ~ Anniversary Edition Midnight Red / Champagne Pearl
