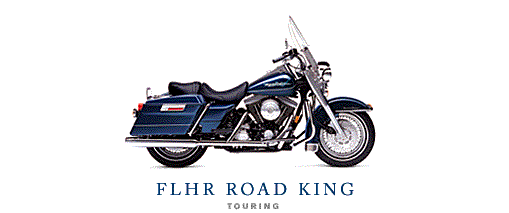

ROADKING
Road King -- From its giant headlight and detachable windshield to its studded seat
and hard saddlebags, the Road King is the ultimate combination of nostalgic styling
and touring convenience. One look, and you're awed by its classic styling. One ride,
and your a loyal subject for life.
Family1 |
Touring |
| Length |
93.7 in. [239.5 cm] |
| Seat Height |
26.94 in. [74.9 cm] |
| Ground Clearance |
5.12 in. [14.7 cm] |
| Rake |
26.2 degrees |
| Trail |
6.16 in. [15.65 cm] |
| Wheelbase |
63.5 in. [159.2 cm] |
| Tire Size |
(Dunlop Touring Elite� II D402 tires) |
| Front |
MT90B16 |
| Rear |
MT90B16 |
| Fuel Capacity |
5 gal. (includes .9 gal. reserve on carbureted models) [18.95 L] |
| Oil Capacity |
4 qts. [3.8 L] |
| Dry Weight |
707 lbs. [325 kg] |
| Gross Vehicle Weight Rating |
1,179 lbs. [534 kg] |
| ELECTRICS |
| Battery |
12-volt, 30 amp-hour |
| Charging (Carburetor and ESFPI) |
Carbureted 38-amp permanent magnet alternator
(235 watts @ 1,000 rpm, 495 watts @ 3,000 rpm, 507 watts peak)
with solid-state regulator |
| Starting |
1.2 kw electric with Bendix-type engagement |
| Lights [As per country regulation] |
| Headlamp |
Quartz halogen 55-watt low beam, 60-watt high beam |
| Passing lamps (except where prohibited by law) |
2 @ 30 watts each |
| Tail/stop lights |
3/32cp |
| Turn signal lights (self-cancelling) |
32cp |
| Running lights (except where prohibited by law) |
Integrated in fender tips and front turn signals |
| Indicator lamps |
High beam, neutral, oil and turn signals |
| PERFORMANCE |
| Mileage (per E.P.A. test regulations2) |
| City |
Carbureted 40 mpg |
| Highway |
Carbureted 50 mpg |
| Braking at 60 mph [96.6 kph] |
| Light load (200 lbs.) [90 kg] |
170 ft. [51.8 m] |
| Maximum load |
180 ft. [54.9 m] |
| Brakes (diameter x width) |
| Front (dual disc) |
11.5 in. x .2 [29.21 cm x 5.08 mm] |
| Rear |
11.5 in. x .3 [29.21 cm x 7.62 mm] |
| Suspension travel |
| Front (air-adjustable) |
4.61 in. [11.7 cm] |
| Rear (air-adjustable) |
3.04 in. [7.7 cm] |
| Lean Angle (per SAEJ1168) |
| Right |
31 degrees |
| Left |
30 degrees |
| CHASSIS/STYLING/CONVENIENCE |
| Frame |
Mild steel; square-section backbone with twin downtubes |
| Swing Arm |
Mild steel; rectangular section |
| Exhaust System |
Duals |
| Wheels |
Cast [Laced option] |
| Instruments |
Electronic speedometer with odometer and resettable tripmeter; fuel gauge |
| Air Cleaner |
8-inch round chrome with spun aluminum insert |
| Handlebar |
Wide FLH style |
| Custom Solo Saddle With Removable
Passenger Seat ~ Removable Lexan Windshield ~ Fat Bob Fuel Tank ~
Adjustable Operator and Passenger Footboards ~ Fiberglass Saddlebags
With Chrome Slant Latches and Attached Lids ~ Rear Bumper ~
Integrated Fork Lock ~ Hazard Warning Flasher ~ Black and Chrome
Engine Trim ~ Air-adjustable Rear Shocks and Front Forks |
| COLORS |
| Vivid Black ~ Lazer Red Pearl ~
Sinister Blue Pearl ~ Violet Pearl ~ Two-Tone Lazer Red / Black |
