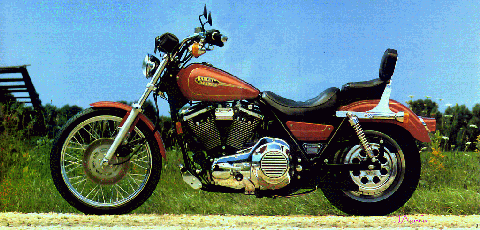

We should tell you right up front, this bike is too cool for you. Come on, look at the
raked front end and the pullback handlebar. Get a load of that Fat Bob tank and
stepped seat. Glance at the standard highway pegs. Who are you kidding? You
really think you can go from "surfing the net" to this? Not likely. Not in this lifetime.
Quartz halogen 55-watt low beam, 60-watt high beam
Tail/stop lights
3/32cp
Turn signal lights (self-cancelling)
32cp
Running lights (except where prohibited by law)
Front turn signals
Indicator lamps
High beam, neutral, oil and turn signals
PERFORMANCE
Mileage (per E.P.A. test regulations2)
City
43 mpg
Highway
55 mpg
Braking at 60 mph [96.6 kph]
Light load (200 lbs.) [90 kg]
160 ft. [48.0 m]
Maximum load
170 ft. [51.0 m]
Brakes (diameter x width)
Front (dual)
11.5 in. x .20 [29.21 cm x 5.08 mm]
Rear
11.5 in. x .23 [29.21 cm x 5.84 mm]
Suspension travel
Front
6.10 in. [15.49 cm]
Rear
4.29 in. [10.89 cm]
Lean Angle (per SAEJ1168)
Right
31 degrees
Left
32 degrees
CHASSIS/STYLING/CONVENIENCE
Frame
Mild steel, rectangular section backbone with twin downtubes
Swing Arm
Mild steel, rectangular section
Exhaust System
Staggered shorty duals with low interconnect
Front Fork
39mm with polished aluminum fork triple clamp
Wheels
13-spoke black-painted aluminum cast
Instruments
Tachometer; electronic speedometer with odometer
and resettable tripmeter; fuel gauge
Air Cleaner
8-inch round chrome with spun aluminum insert
Handlebar
Buckhorn
Under-Transmission Oil Tank ~
Adjustable Rear Shocks ~ Sport-Style Front Fender With Painted Brace
~ Chrome Rear Fender Supports ~ Rubber-Isolated Operator Footpegs
and Passenger Pegs ~ Highway Pegs ~ Cap-Look Fuel Gauge With Gas
Tank ~ Integrated Fork Lock With Common Barrel Key For Ignition ~
Black and Chrome Engine Trim
COLORS3
Vivid Black ~ Lazer Red Pearl ~
Sinister Blue Pearl ~ Violet Pearl ~ Two-Tone Lazer Red / Black
