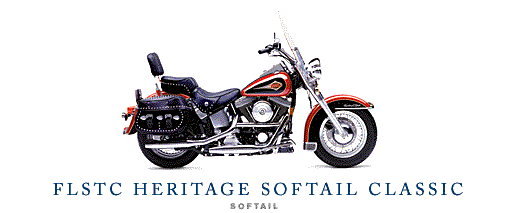

Good looks won't get you everywhere... unless, of course, you're on a Heritage Classic. But don't let the sparkling studs and rich leather fool you... the king size windshield and ample saddlebags tell you this hunk can be pretty smart, too.
The first Harley with the Heritage moniker was a limited edition motorcycle built in 1981-82. With a limited production of 1,097, the Heritage was the first non-AMF motorcycle to come off the line after executives bought the company back in 1981.
Family1 Softail
Length 94.02 in. [238.8 cm]
Seat Height 26.50 in. [70.5 cm]
Ground Clearance 5.47 in. [13.90 cm]
Rake 32 degrees
Trail 5.80 in. [14.73 cm]
Wheelbase 63.90 in. [162.30 cm]
Tire Size
Front MT90B16
Rear MT90B16
Fuel Capacity 4.2 gal. (includes .4 gal. reserve) [15.91 L]
Oil Capacity 3 qts. [2.8 L]
Dry Weight 704 lbs. [302 kg]
Gross Vehicle Weight Rating 1,118 lbs. [508 kg]
ELECTRICS
Battery 12-volt, 20 amp-hour, 275 cca
Charging 32-amp permanent magnet alternator
(360 watts @ 3,000 rpm, 416 watts peak) with solid-state regulator
Starting 1.2 kw electric with Bendix-type engagement
Lights [As per country regulation]
Headlamp Quartz halogen 35-watt low beam, 60-watt high beam
Tail/stop lights 3/32cp
Turn signal lights (self-cancelling) 32cp
Running lights (except where prohibited by law) Front and rear fender tips
Indicator lamps High beam, neutral, oil and turn signals
PERFORMANCE
Mileage (per E.P.A. test regulations2 )
City 43 mpg
Highway 55 mpg
Braking at 60 mph [96.6 kph]
Light load (200 lbs.) [90 kg] 161 ft. [48.3 m]
Maximum load 177 ft. [53.9 m]
Brakes (diameter x width)
Front 11.5 in. x .20 [29.21 cm x 5.08 mm]
Rear 11.5 in. x .23 [29.21 cm x 5.82 mm]
Suspension travel
Front 5.10 in. [12.95 cm]
Rear 4.06 in. [10.31 cm]
Lean Angle (per SAEJ1168)
Right 28 degrees
Left 29 degrees
CHASSIS/STYLING/CONVENIENCE
Frame Tubular mild steel
Swing Arm Tubular mild steel
Exhaust System Staggered fishtail duals
Front Fork Hydra Glide style
Wheels Laced
Instruments Electronic speedometer with odometer and resettable tripmeter
Air Cleaner 8-inch round chrome with spun aluminum insert
Handlebar High-rise
1950s-Style Leather Saddlebags ~
King-Size Lexan Windshield ~ Custom Solo Saddle With Removable
Passenger Seat ~ Passenger Backrest ~ Full-Length Operator
Footboards ~ Heel-Toe Shift Lever ~ Chrome "Horseshoe" Oil Tank ~
Chrome Passing Lamps ~ Chrome-Plated Directional Light Bar ~ Chrome
Hubcover ~ Ribbed Transmission Cover ~ Ribbed Triple Clamp Cover ~
Chrome Rear Fender Supports ~ Black and Chrome Engine Trim ~ Barrel
Keyed Ignition
COLORS3
Vivid Black
Lazer Red Pearl
Sinister Blue Pearl
Violet Pearl
Two-Tone Lazer Red / Black
