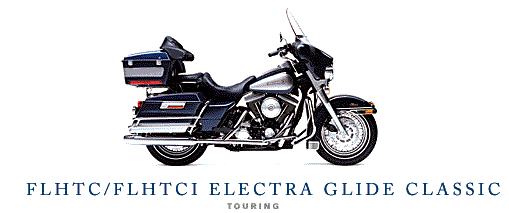

Electra Glide Classic -- For those of you who fight the urge to get a touring bike, the Electra Glide Classic is a formidable opponent. It sets you up with a fairing, windshield and stereo system. It gives you an uppercut to the midsection with a big, soft seat and passenger backrest, followed by a right jab to the chin with its barrel-locked Tour-Pak and saddlebags. Finally, the 1340CC fuel-injected Evolution engine gives you a left cross that leaves you wondering what hit you. And why it took so gosh darn long to do
Quartz halogen 55-watt low beam, 60-watt high beam
Passing lamps (except where prohibited by law)
2 @ 30 watts each
Tail/stop lights
3/32cp
Turn signal lights (self-cancelling)
32cp
Running lights (except where prohibited by law)
Integrated in fender tips, Tour-Pak and front turn signals
Indicator lamps
High beam, passing lamps, neutral, oil,
accessories, low fuel on ESPFI models, and turn signals
PERFORMANCE
Mileage (per E.P.A. test regulations2)
City
Carbureted 40 mpg [ESPFI 42 mpg]
Highway
Carbureted 50 mpg [ESPFI 52 mpg]
Braking at 60 mph [96.6 kph]
Light load (200 lbs.) [90 kg]
170 ft. [51.8 m]
Maximum load
180 ft. [54.9 m]
Brakes (diameter x width)
Front (dual disc)
11.5 in. x .2 [29.21 cm x 5.08 mm]
Rear
11.5 in. x .3 [29.21 cm x 7.62 mm]
Suspension travel
Front (air-adjustable with anti-dive)
4.61 in. [11.7 cm]
Rear (air-adjustable)
3.04 in. [7.7 cm]
Lean Angle (per SAEJ1168)
Right
31 degrees
Left
30 degrees
CHASSIS/STYLING/CONVENIENCE
Frame
Mild steel; square-section backbone with twin downtubes
Swing Arm
Mild steel; rectangular section
Exhaust System
Chrome duals
Front Fork
Air-adjustable, Hydra Glide style with electro-pneumatic anti-dive
Wheels
10-spoke cast with tubeless whitewall tires [Laced option]
Instruments
Ambient temperature gauge; tachometer;
speedometer with sound system with handlebar controls odometer
and resettable tripmeter; fuel gauge; voltmeter; oil pressure gauge
Air Cleaner
8-inch round chrome with spun aluminum insert
[ESPFI model has an identifying embossed aluminium insert]
Premium Stereo Sound System (new
amp, 40 watts per speaker) With AM/FM/Cassette, Fairing-Mounted
Speakers, Weather Band, Digital Clock, Bidirectional Seek, Scan,
Music Search and Music Scan, and 8 presets ~ Fork-Mounted Fairing ~
Deluxe, Adjustable King Tour-Pak With Radio Antenna and Storage
Pockets ~ Wide, Soft-Look Seat With Passenger Isolator-Mounted
Backrest; Accepts Optional Driver Backrest ~ Clear Lexan Windshield
~ Adjustable Operator and Passenger Footboards ~ Fiberglass
Saddlebags With Slant Latches and Attached Lids ~ Saddlebag and
Tour-Pak Barrel-Key Locks ~ Chrome Saddlebag Guards ~ Chrome Luggage
Carrier ~ Integrated Fork Lock ~ Hazard Warning Flasher ~
Instrumentation and Radio Component Mountings in Inner Fairing ~
Black and Chrome Engine Trim ~ Air-adjustable Rear Shocks ~
Cigarette Lighter
COLORS3
Vivid Black ~ Two-Tone Lazer Red / Black ~
Lazer Red Pearl ~ Two-Tone Sinister Blue Pearl / Platinum Silver ~
Sinister Blue Pearl ~ Two-Tone Mystique Green / Black ~
Anniversary Edition Two-Tone Midnight Red / Champagne Pearl
Road Glide -- Forget everything you've ever been told about how a touring
motorcycle is supposed to look. The standard changes today. With its clear-lense
headlamp, low windshield, sleek fairing and new seat, the Road Glide puts the fun in
funky. Its front fender and saddlebags come clean, paving a road for your custom
creativity. And its redesigned, totally integrated inner fairing guides the way. The
Road Glide... where you go on this bike won't just be measured in miles.
