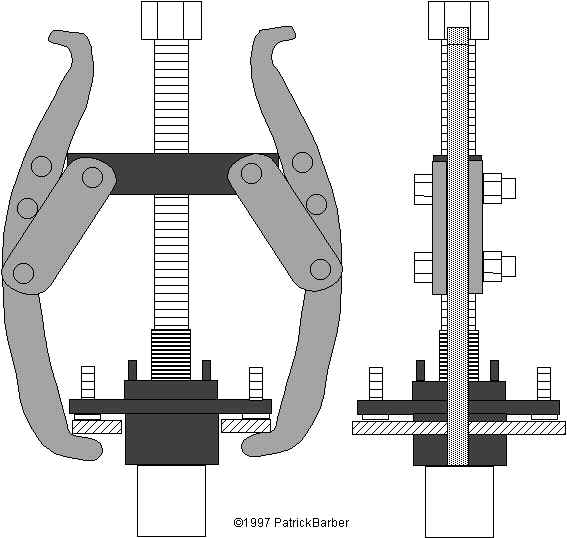

This is how I handled it. First I placed 2 flat steel bars under the
hub flange beneath the lugs. The material I used was 3/4" wide X 1/4" thick by
4" long cold rolled flat steel. This was used to distribute the load over the
backside of the hub. The steel flats will bend between the studs as the puller is
tightened, but this is OK as it still helps prevent bending the hub.
Snug the puller by hand as you place the steel bars on the back side of the puller.
Once the puller is snug, tighten the 4 bolts which hold the puller's arms to the
cross-piece. This is important as it will prevent the puller from twisting off the
hub. I tightened these bolts as tight as I possibly could. To aid it removal, I
oiled the threads of the puller and placed oil on the spindle/puller interface.
With the puller tight and snug to the hub, I tightened one of the pullers arms in my
vise to hold it while turning the bolt on the puller. The whole axle shaft has
been removed from the vehicle for U-joint replacement.
Wear Safety glasses and a face shield.
Tighten the puller bolt until the hub is released. It takes quite a bit of torque to
turn the bolt. The hub will "pop" off the spindle suddenly.
The first time I removed a hub with the 2 jaw puller, I bent the hub. I tried
this method next on another "spare" axle and was successful at removing the hub
without damage.
