240-Z to Eagle Talon Seat Conversion

This is a documentary of conversion from stock '72 Z seats to those from a '93 Eagle Talon. Installation was simple and the seats were found at a wrecking yard for $75.00 + TAX.

One should be aware that the seats buns are slightly higher than the stock Z seats. Drivers which are 6+ feet tall may have some headroom problems.

Click the images below to enlarge:

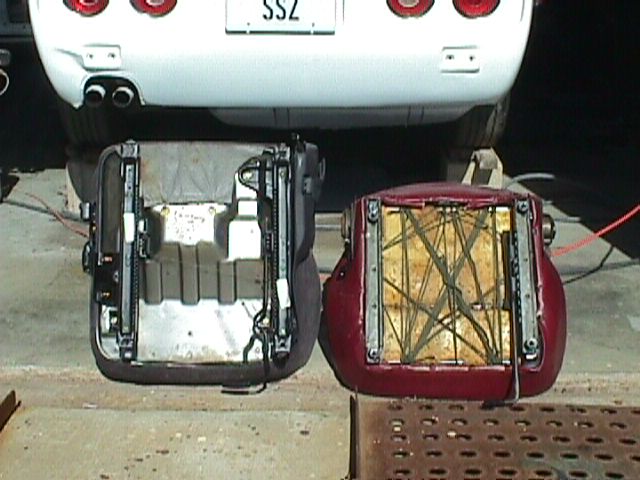

Basic size and track comparison.

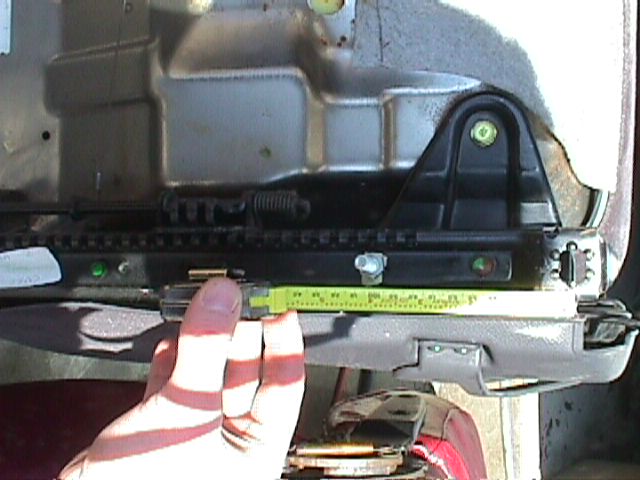

Weld the 5/16-NC x 1-1/4 bolt, 100 mm down from the Talon rear bolt holes.

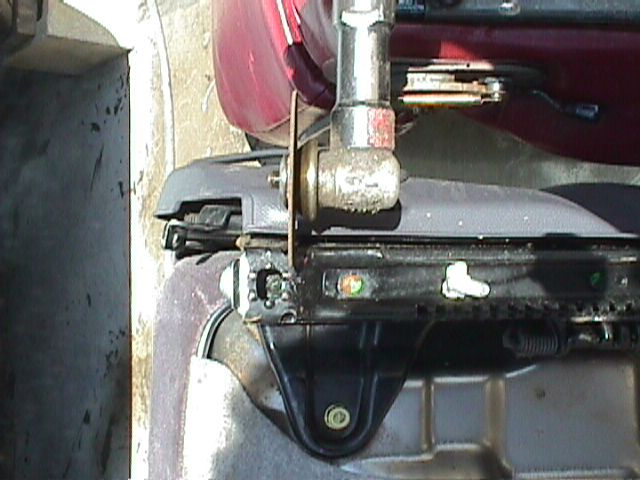

Cut off the rear feet starting and stopping at the stress relieving notches.

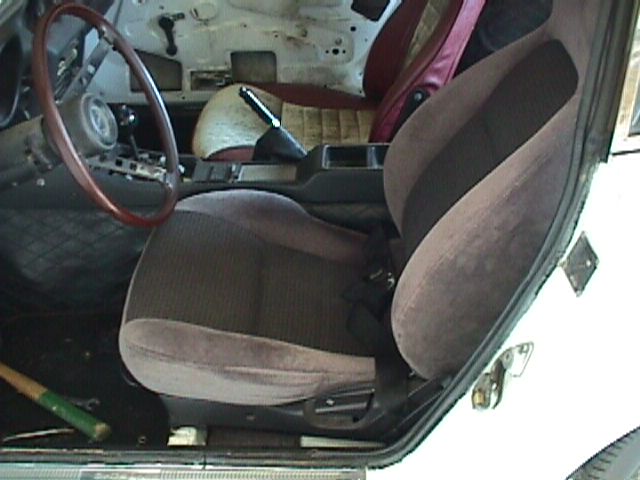

Side by side comparison of Talon to stock 240-Z.

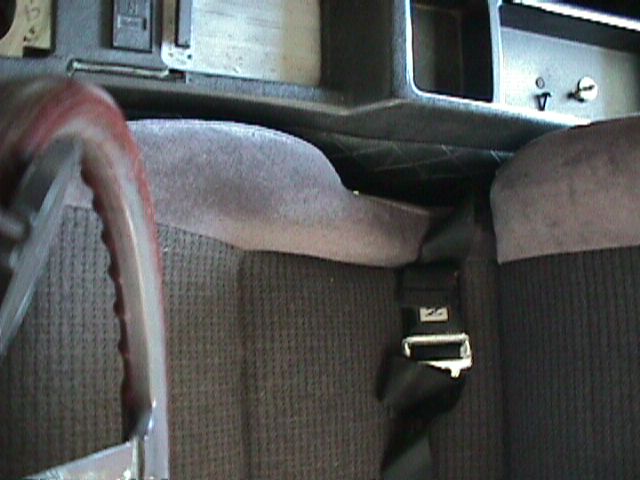

Tunnel to seat clearance
.

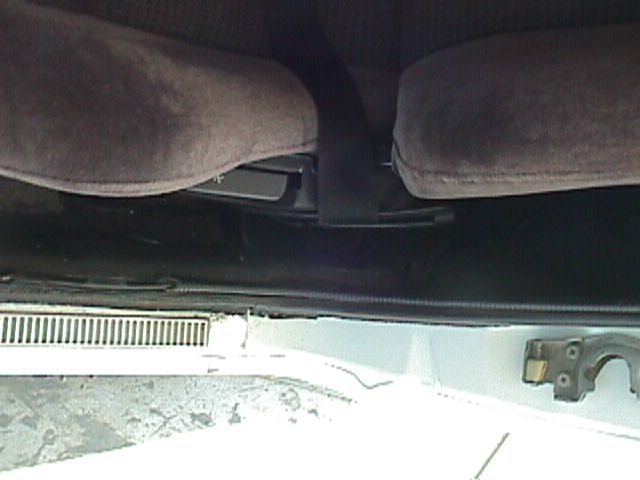

Seat to rocker clearance, no offset on factory Z mounting holes.

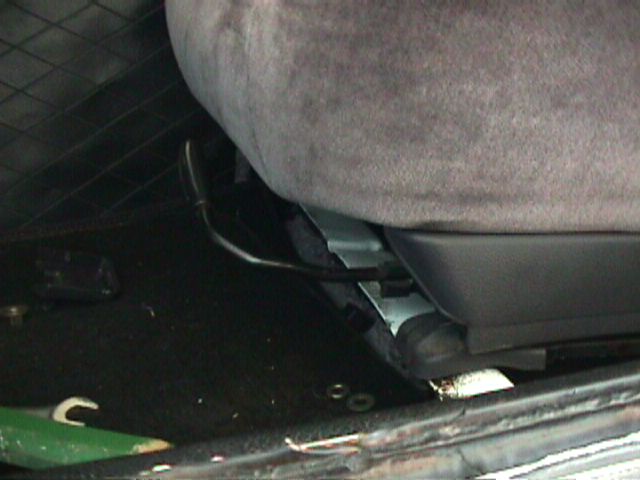

Front feet mounted on stock Z holes, using Talon hardware.

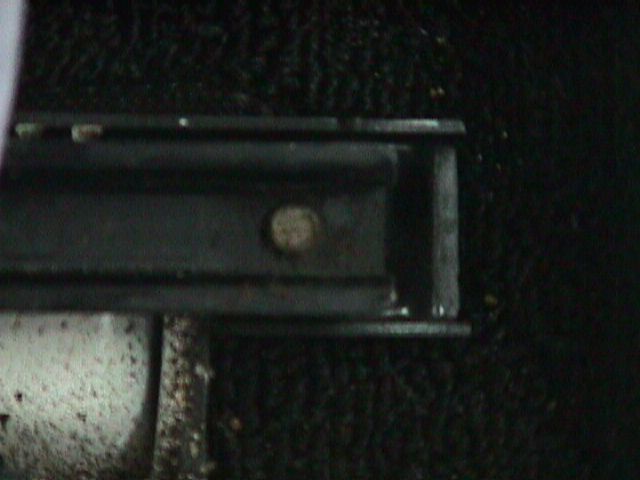

Fit of rear feet after being trimmed
.

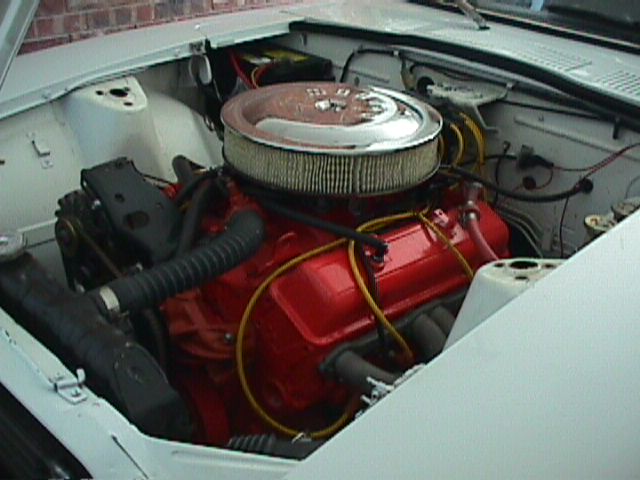

The business end of things!!!

Questions or Comments?  E-mail me at:  [email protected] .
