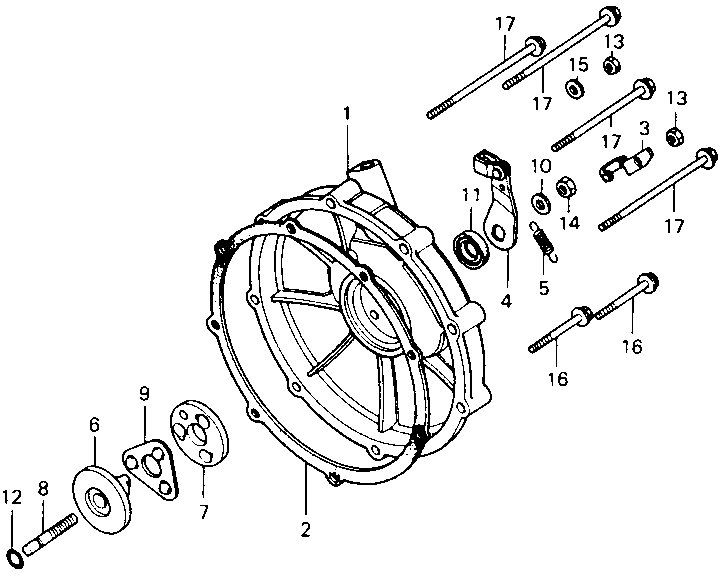

Ref.No |
Partnumber |
Description |
Reqd. |
| 1 | 11342-371-000 | COVER, CLUTCH | 1 |
| 2 | 11393-371-000 | GASKET, CLUTCH COVER | 1 |
| 3 | 15707-371-000 | CLIP, OIL DRAIN TUBE | 1 |
| 4 | 22810-371-000 | LEVER COMP., CLUTCH | 1 |
| 5 | 22815-300-000 | SPRING, CLUTCH LEVER | 1 |
| 6 | 22820-371-000 | SHAFT, CLUTCH RELEASE | 1 |
| 7 | 22830-371-000 | CAM COMP., CLUTCH LIFTER | 1 |
| 8 | 22841-300-000 | BOLT, CLUTCH ADJUSTING | 1 |
| 9 | 22860-300-006 | RETAINER COMP., CLUTCH BALL | 1 |
| 10 | 90402-822-000 | WASHER. HEAD, 8MM | 1 |
| 11 | 91202-216-003 | OIL SEAL, 14x24x5 | 1 |
| 12 | 91301-283-005 | O-RING., 5x2.4M | 1 |
| 13 | 94001-06000 | NUT, HEX., 6MM | 2 |
| 14 | 94002-08000-OS | NUT, HEX., 8MM | 1 |
| 15 | 941O1-06000 | WASHER, PLAIN, 6MM | 1 |
| 16 | 95700-06035-00 | BOLT, FLANGE, 6x35 | 2 |
| 17 | 95700-06085-00 | BOLT, FLANGE, 6x85 | 4 |
