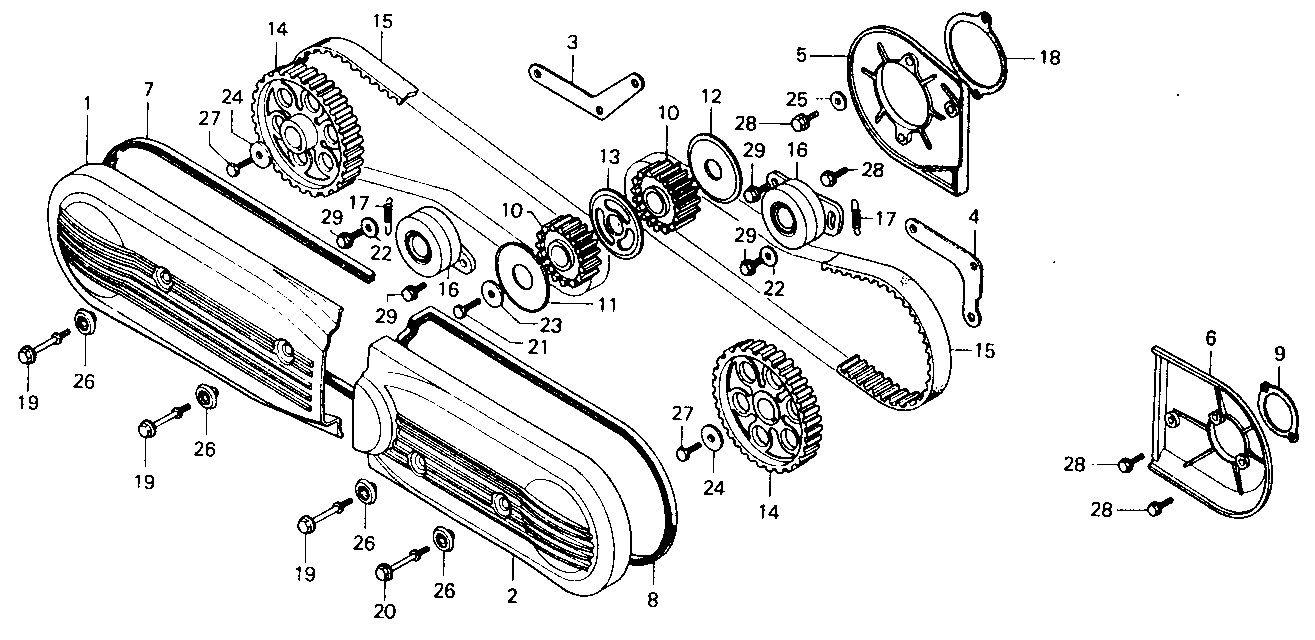

Ref. |
Partnumber |
Description | Reqd. |
| 1 | 11511-371-010 | COVER,R. FR. | 1 |
| 2 | 11521-371-010 | COVER,L. FR. | 1 |
| 3 | 11531-431-000 | PLATE,B,TIMING. BELT ADJUSTR | 1 |
| 4 | 11535-431-000 | PLATE,A,TIMING. BELT ADJUSTR | 1 |
| 5 | 11541-371-000 | COVER,R,HEAD SEALD | 1 |
| 6 | 11542-371-000 | COVER,L,HEAD SEALD | 1 |
| 7 | 11831-371-010 | PACKING, R.FR. COVER | 1 |
| 8 | 11832-371-010 | PACKING, L.FR. COVER | 1 |
| 9 | 12391-371-000 | GASKET, FUEL PUMP COVER | 1 |
| 10 | 13621-657-000 | PULLEY,TIMING BELT DRIVE | 2 |
| 11 | 13622-371-000 | PLATE, TIMING BELT GUIDE | 1 |
| 12 | 13622-657-000 | PLATE A, TIMING BELT GUIDE | 1 |
| 13 | 13623-371-000 | PLATE, 0. TIMING BELT GUIDE | 1 |
| 14 | 14211-657-010 | PULLEY, TIMING BELT DRIVEN | 2 |
| 15 | 14400-679-003 | BELT, TIMING (MITSUBOSHI) | 2 |
| 16 | 14400-679-004 | BELT, TIMING (UNITTA) | 2 |
| 17 | 14510-371-008 | ADJUST. COMP. TIMING BELT (TOYO) | 2 |
| 18 | 14516-371-000 | SPRING,TIMING BELT ADJUSTER | 2 |
| 18 | 30376-371-000 | PACKING, BREAKER | 1 |
| 19 | 90017-371-000 | BOLT, SPECIAL, 6x45.5 | 3 |
| 20 | 90019-371-000 | BOLT, SPECIAL, 6x54 | 1 |
| 21 | 90021-371-000 | BOLT, PULLEY, 10x28 | 1 |
| 22 | 90406-371-000 | WASHER, 8MM | 2 |
| 23 | 90414-611-000 | WASHER, SPECIAL,34x10.5x4.0 | 1 |
| 24 | 90435-611-000 | WASHER, SPECIAL,28x8.5x4.0 | 2 |
| 25 | 90441-028-010 | WASHER, SEALING, 6MM | 1 |
| 26 | 90541-371-000 | RUBBER, MOUNT | 4 |
| 27 | 92000-08022-OA | BOLT HEX., 8x21 | 2 |
| 28 | 95700-06018-00 | BOLT FLANGE 6x18 | 4 |
| 29 | 95700-08022-00 | BOLT, FLANGE, 8x22 | 4 |
