The Trans Am Trans Rebuild

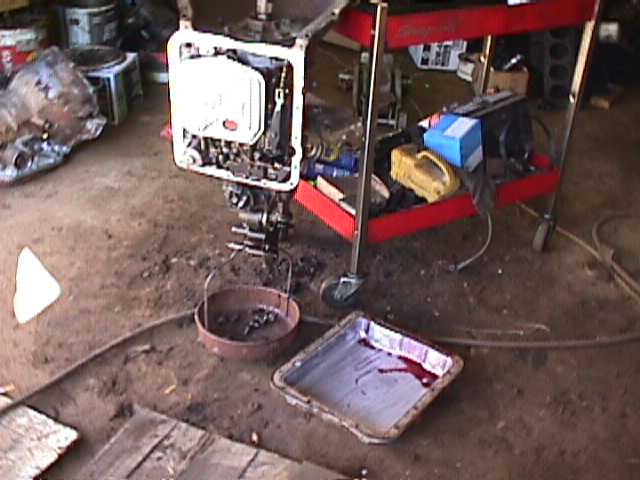

The 700 R4 after removal.

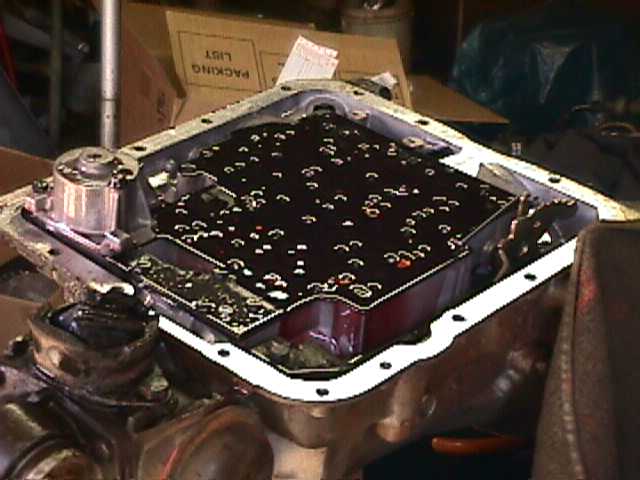

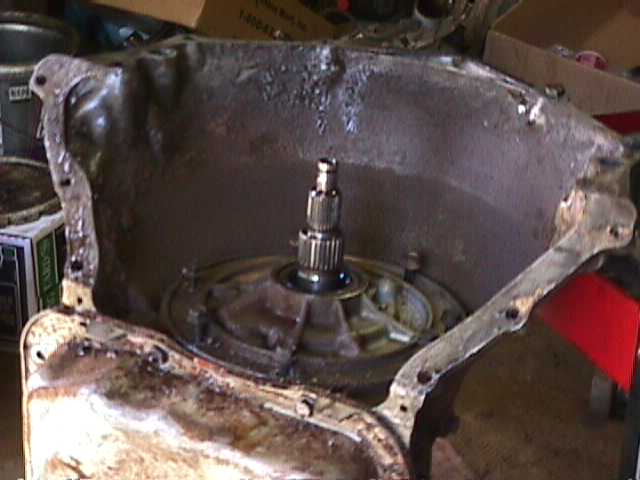

The pan pulled.

At this point we had discover a broken torque converter and possibley the front pump.

A close up.

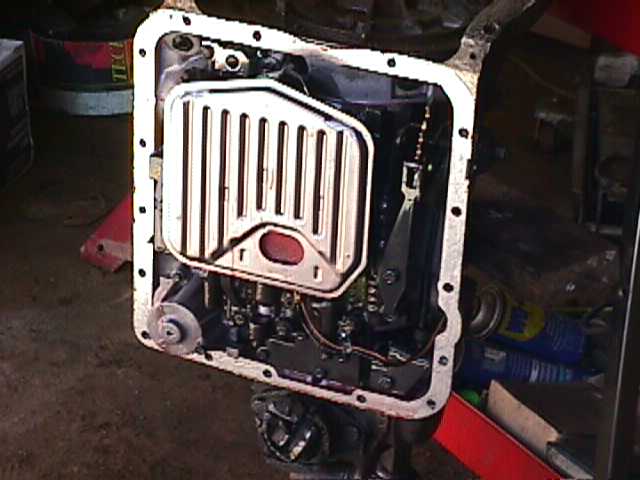

Filter remove and all still looks pretty good.

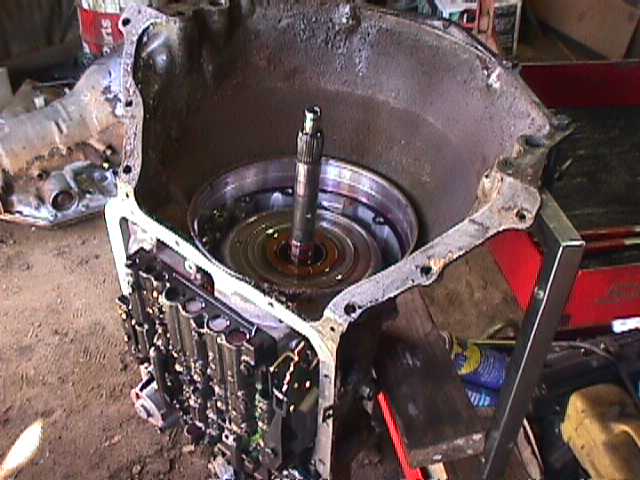

The car after pulling the transmition.

Front pump pulled.

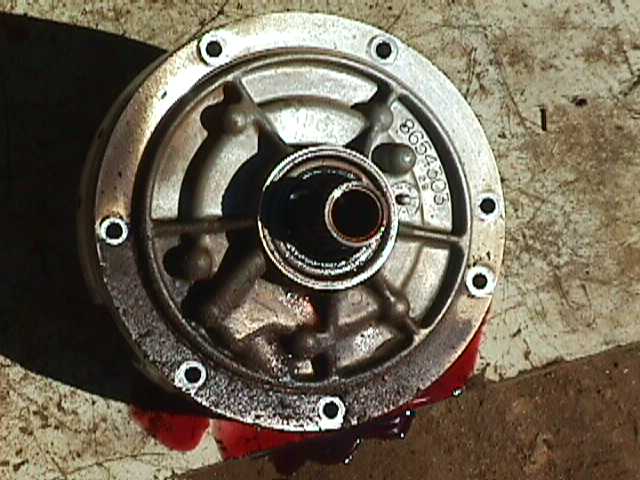

And yep the pump was broke up inside REAL BAD.

Almost looks like its bleeding don't it.

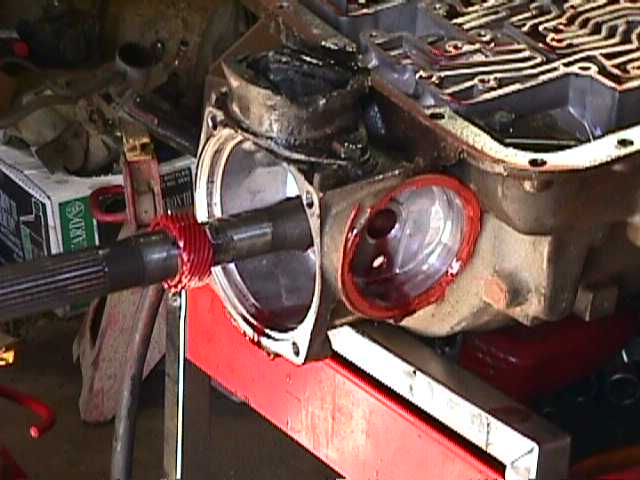

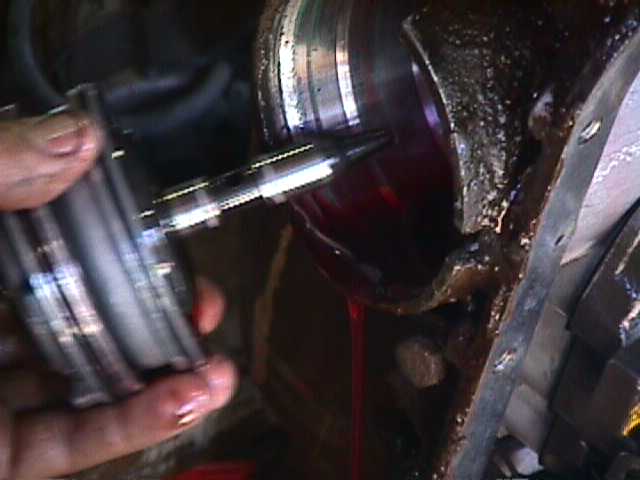

The servo.

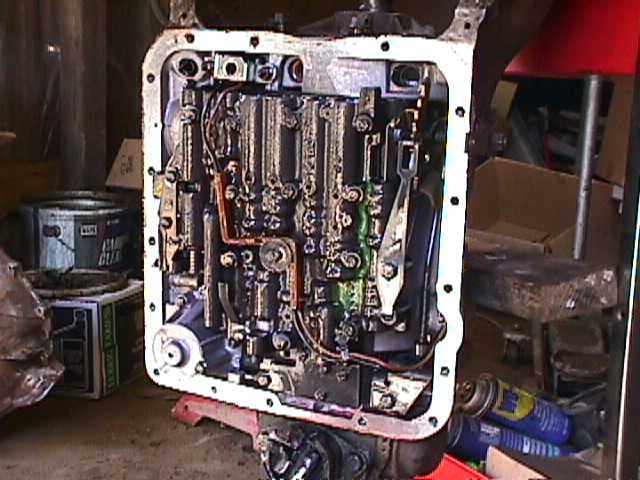

After removing the valve body. We discovered at this point this thing had a KILLER shift kit already installed

and we desided to leave it in.

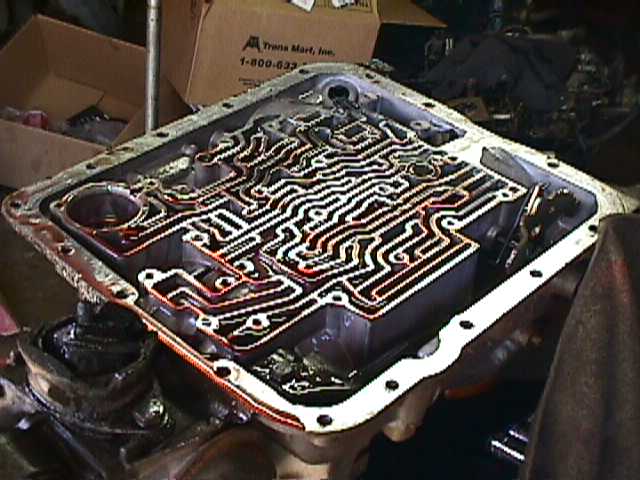

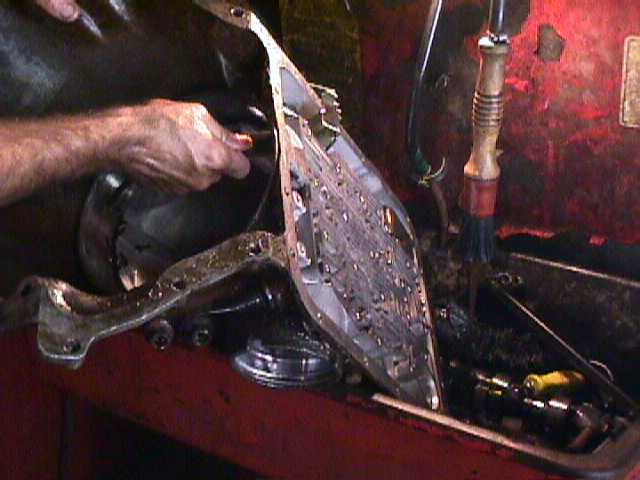

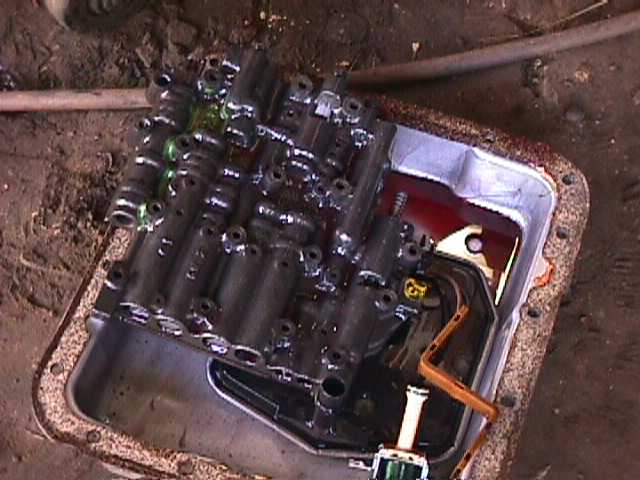

The removed valve body and pan.

The housing.

The output shaft revealed.

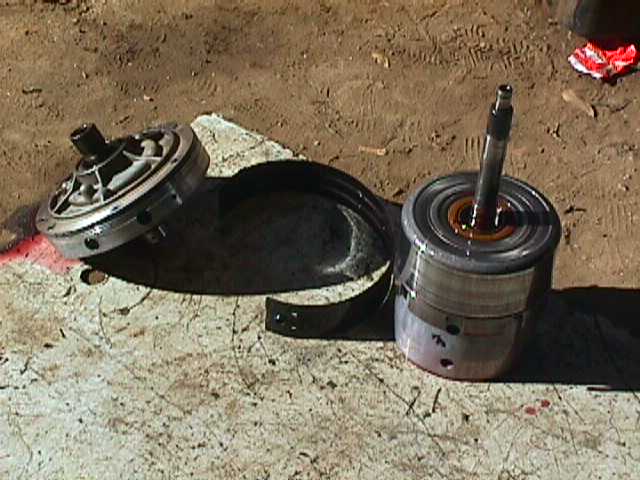

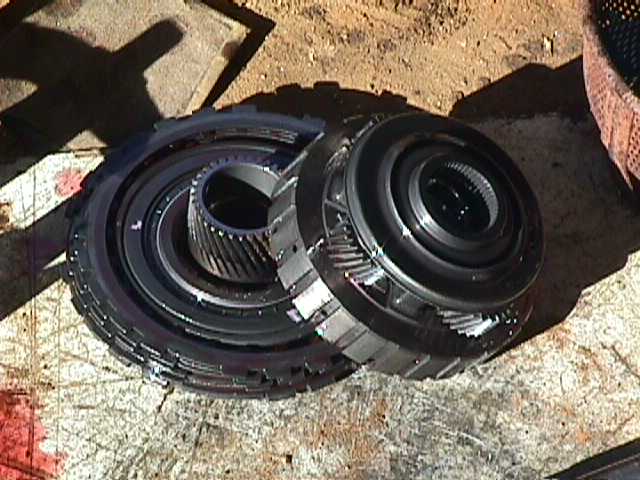

The front pump, the clutch pack band, and the clutch pack drum.

The front pump was the only one damaged of these 3.

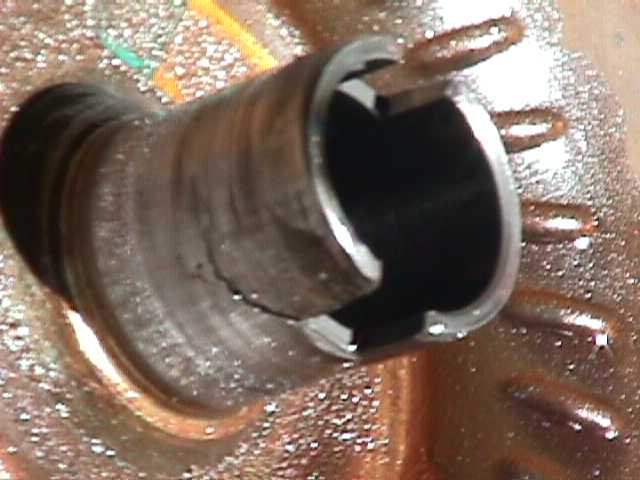

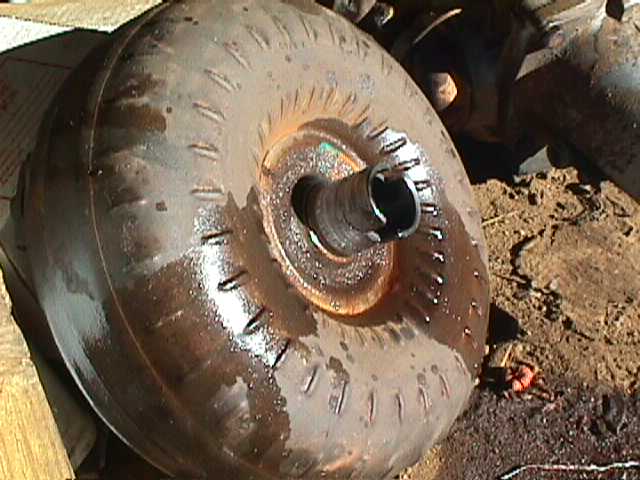

You can see where the torque converter broke here.

Larger view.

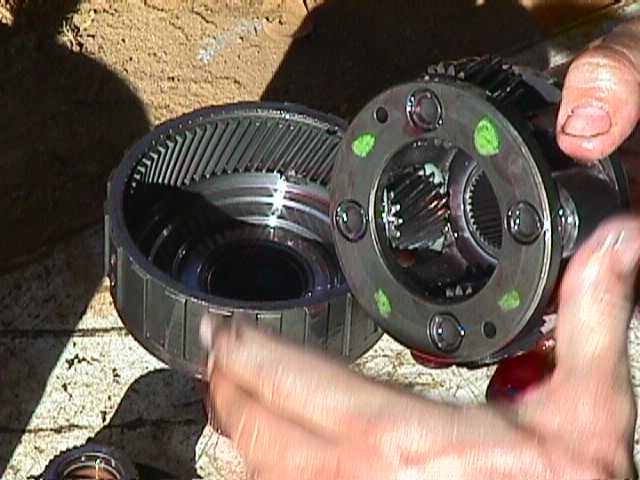

The planetary gears. All good here.

Another view.

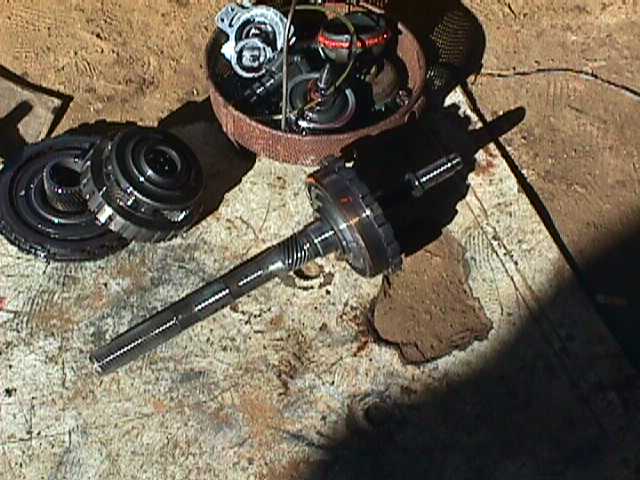

Main shaft and misc parts.

Cleaning her up to put back together.
