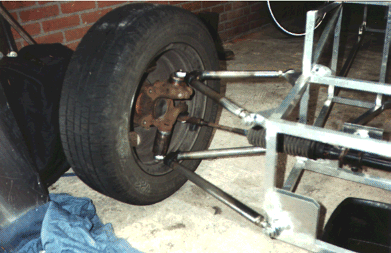

Front suspension, notice the welded reinforcement plates the
links are fitted to

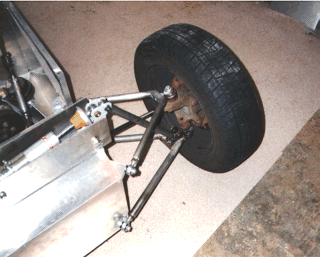

Font suspension, notice the lever that drives the spring and
damper. The mechanism is calculated in a way that independed of
the load in the car the resonance frequency stays the same (calculated
1.6 Hz front and 1.8 Hz back). It will act like a progressive
spring but in this case the damper acts progressive too, therefore
the relative damping ratio will also stay constant independent of
te load.

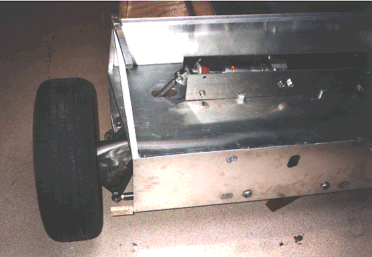

Rear suspension (not really visible) just like front suspension
double wishbone. The hubs are welded plate steel.
