FIAT 850 SPIDER / SPORT SPIDER
Specifications
Engine
- Rear-mounted 4 cylinder inline, OHV, pushrods and rockers, 3 main bearings
- Bore x stroke (mm) 63.9 x 63.5 for 817cc (USA only),
65.0 x 63.5 for 843cc, 65.0 x 68 for 903cc.
- Compression ratio - 9.3:1 for 817cc and 843cc, 9.5:1
for 903cc
- BHP @ rpm - 52 @6200
- Water cooled, engine driven fan
- Carburettor - Weber 30 DIC
- Centrifugal oil filter

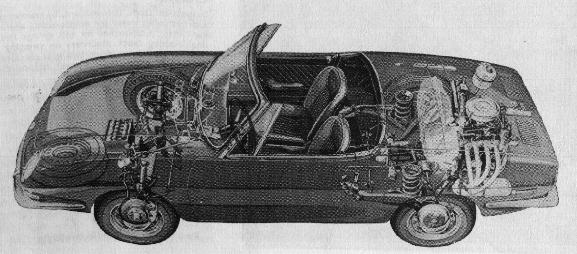

Chassis & Body
- Unitary construction, 2 door, 2 seats roadster
- Front suspension - independent with upper swinging arms, transverse
leaf springs, telescopic shocks and stabilizer bar
- Rear suspension - independent with semi-trailing arms, coil springs,
telescopic shocks and stabilizer bar
- Brakes - Disc front, Drum rear, 13 inch wheels
- Steering type - Worm & Sector, turning circle 31.5 ft
- Fuel tank capacity - 8 gal, 30 litres
- Dimensions (mm) - 3824(L) x 1493(W) x 1220(H), with hardtop, 1205(H).
