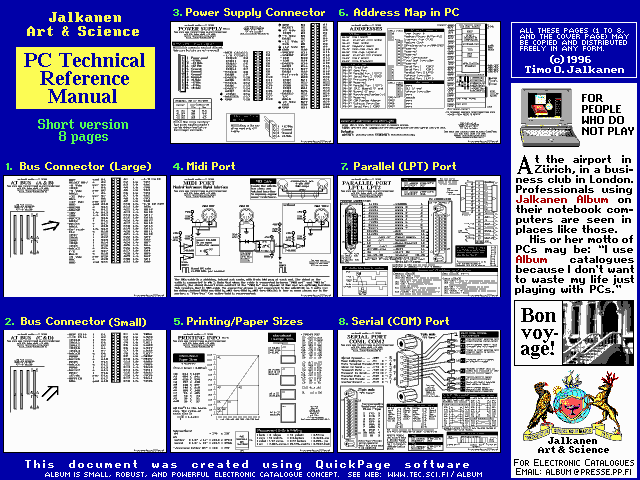

Perfectly illustrated online guide for microcomputer users (Revised: Oct1997, Jalkanen HiTec)
BusAB|BusCD|PowerSupply|MIDI-Port|PrintingInfo|AddressMap|Parallel-LPT|Serial-COM
Hardware and system information, HW interfacing, board signals, etc... more to come...
Info here is in most of the cases compatible to the classic "IBM PC Technical Reference Manual"
PC-Bus Signals/Large Connector- PC Card A&B pins

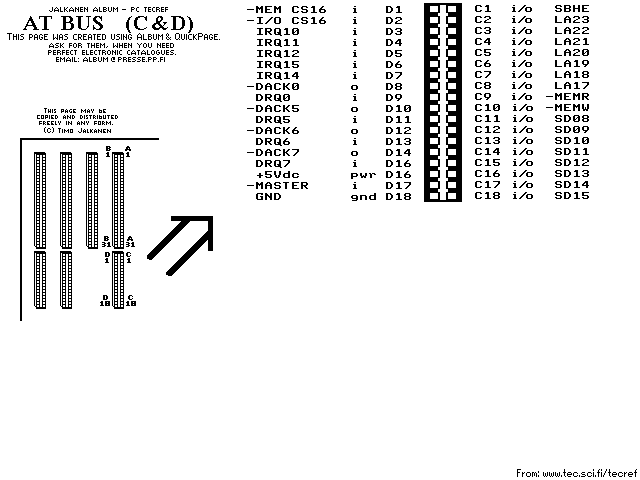

PC-Bus Signals/Small Connector- AT Card C&D pins

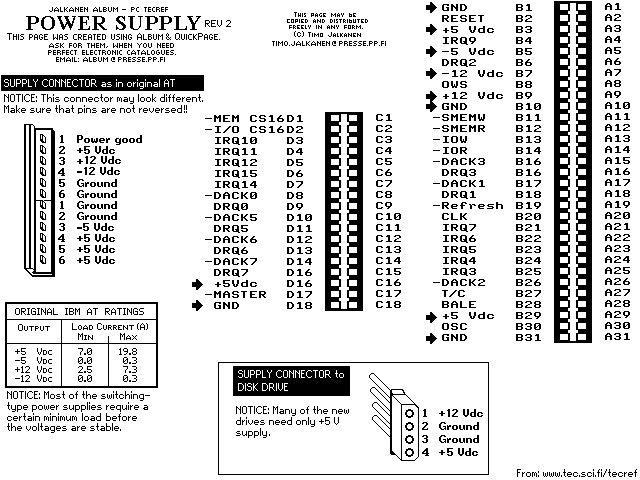

PC Power Supply- Connector and supply pins in a bus

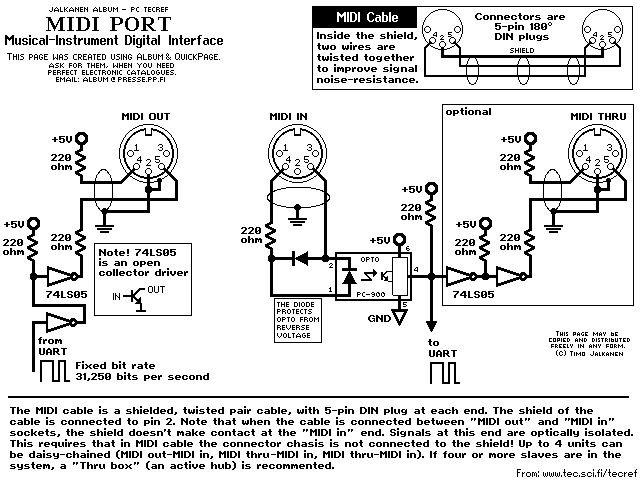

MIDI Port- Musical-Instrument Digital Interface -- pins, cables

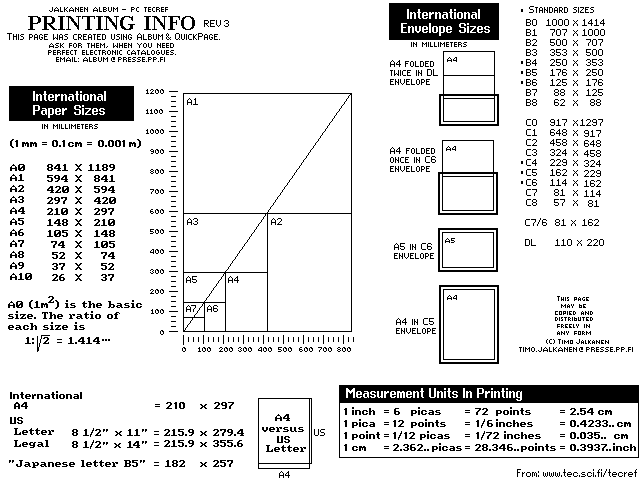

Printing Info- Paper and envelope sizes, measurement units in printing

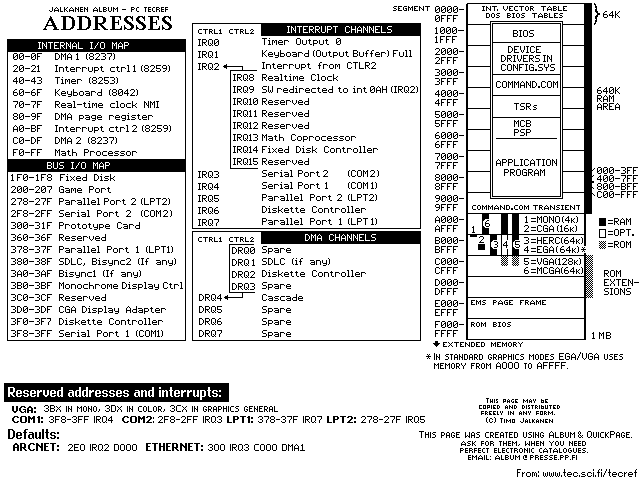

PC Addresses- Memory map, I/O, DMA, Interrupts (IRQ)

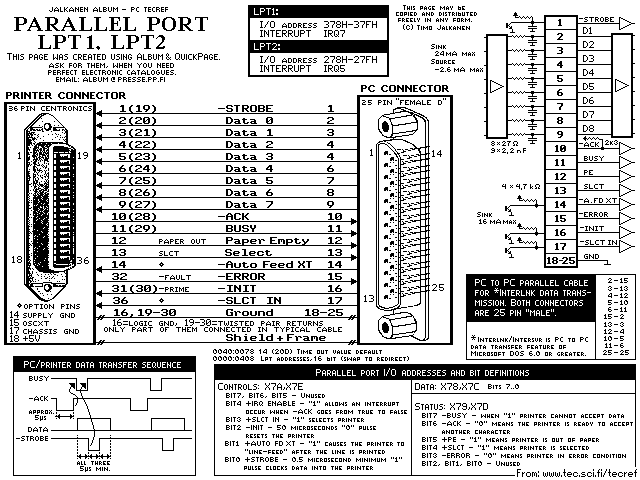

PC Parallel (LPT) Port- Pins, signals, I/O and cables

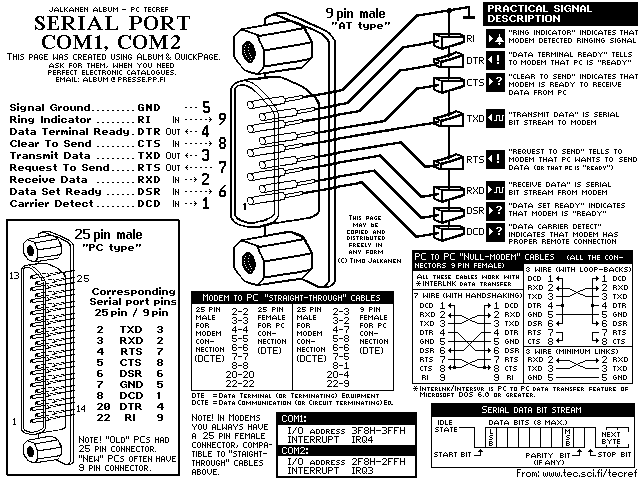

PC Serial (COM) Port- Pins, signals, I/O and cables
GUESTBOOK 1997... See it or write on it
Found any errors in Tec Ref documents, comments, updates, new pages !? Send info to:
([email protected])
We will update these internet PC Tech Ref pages in the future.
