The Shop
This shop was built in Penn State football country and has been a work in progress since 1996. It is a metal/wood shop to allow my father his enjoyment of woodworking. However, more metal working equipment has found it's way to the door, and has started to dominate the theme of the shop. Check out the rest of this web site if you are coming from a link.
Updated: 4/18/00
The MiniMill/3 CNC milling machine with FlashCut CNC signal generator, and computer that is networked with the CAD computer in the basement of the house.
Date: 8/12/99


I recycled an old monitor box from work for CNC usage. Red button on front panel shuts all CNC controller boxes off for emergency stops, but leaves computer on.
Date: 11/6/99
All FlashCut controls for MiniMill/3 are stored under monitor. Heavy mesh wire shelving allows exhaust fan on back of monitor box to cool both monitor and electronics with an updraft flow of air.
Date: 11/6/99


FlashCut setup to cut spokes in a flywheel.
Date: 1/20/00
MiniMill/3 cutting the spokes in the flywheel.
Date: 1/20/00


Click on pictures below to enlarge.

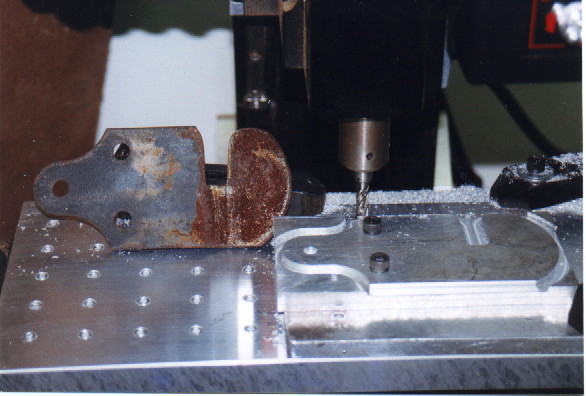

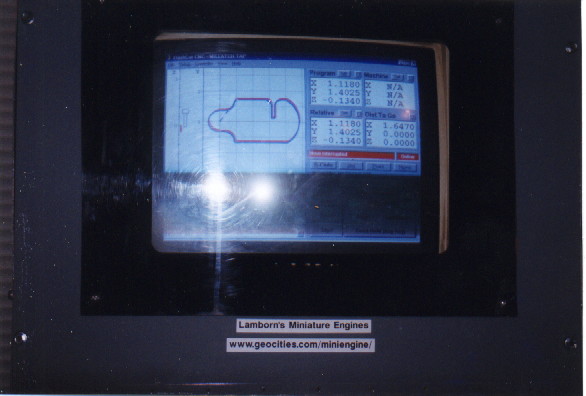

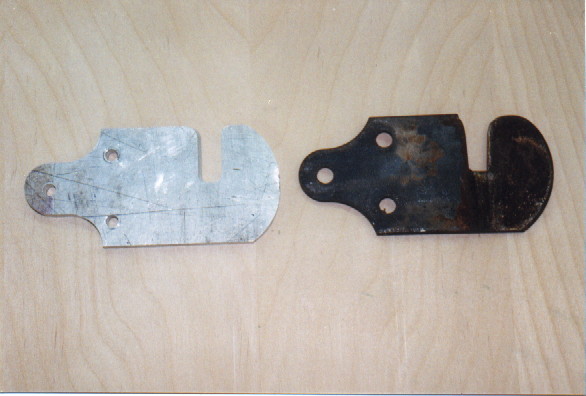

MiniMill/3 milling out aluminum replacement latches. Date: 4/8/00 Latch for neighbor's trailer tailgate. Date: 4/8/00  FlashCut display while milling latches. Program was made with BobCAD.
