flyer

FLYER INDÚSTRIA AERONÁUTICA LTDA

Rod. Virgínia Viel Campo Dallórto, Km 01 - Sítio Jejavana
13172-220 - Sumaré (SP)
Telefone (019)873-3753

Aircraft's Technical Specifications

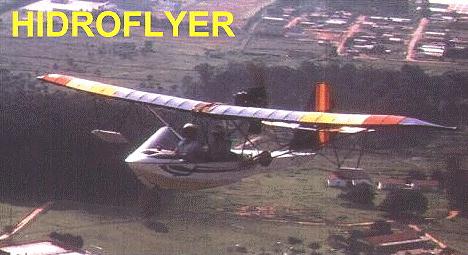

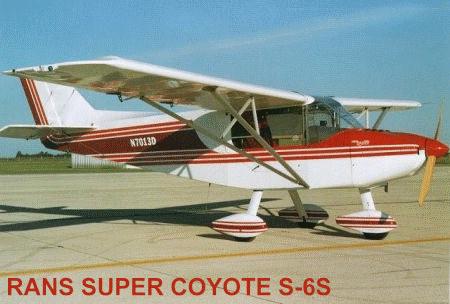

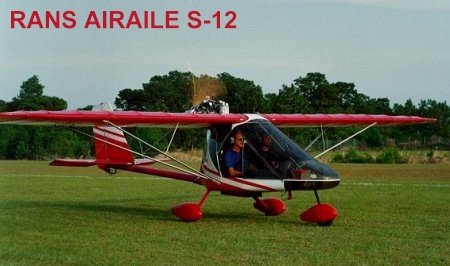

dados\modelo	gt	hidroflyer	airaile	coyote S-6S	S-9 chaos
wing span	10,52 m	10,50 m	9,95 m	10,62 m	6,66 m
length	6,54 m	6,58 m	6,20 m	6,10 m	4,75 m
empty weight	210 kg	260 kg	205 kg	260 kg	163 kg
maximum load	250 kg	250 kg	232 kg	330 kg	145 kg
fuel capacity	60 l	60 l	98 l	98 l	60 l
engine	Rotax 582	Rotax 618	Rotax 582	Rotax 912	Rotax 582
rate of climb	600 fpm	700 fpm	700 fpm	1000 fpm	1000 fpm
stol with flap	no flap 30 mph	32 mph	33 mph	33 mph	25 mph
cruise speed	55 mph	75 mph	75 mph	100 mph	90 mph
never exceed	85 mph	90 mph	100 mph	120 mph	130 mph
take off roll	50 m	60(ground)/150(water)	70 m	70 m	60 m
max oper ceiling	10.000 f	10.000 f	15.000 f	17.000 f	16.000 f
basic price	US$16.300	US$26.800	US$19.450 (*)	US$30.900 (+)	US$27.000
photo	soon				soon

• (*) Price with 503 engine with less performance than 582 as shown at the table above.
• (+) Price with 582 engine with less performance than 912 as shown at the table above.
• performance data related to sea level operation.
• data provided by Flyer Indústria Aeronáutica Ltda by 29-APR-96.

© 1998 Cláudio Amaral
