Technical Pages


Technical information about the FIAT DMUs:

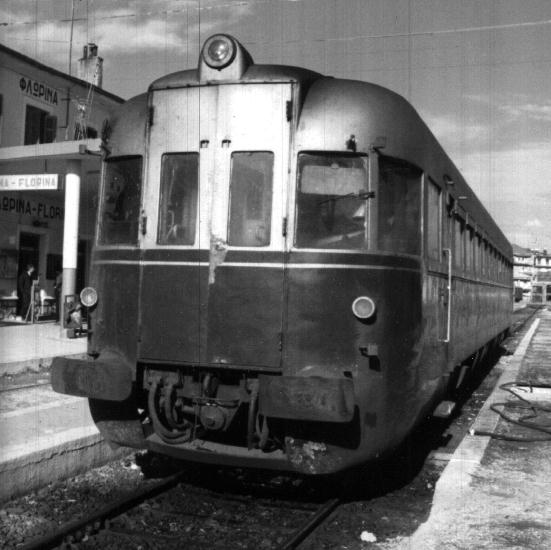

Florina (Lerin) 1989 Photo: N. Sbarounis

FIAT series AA11 DMU

Manufacturer FIAT (Italy)
Mnfr. year  1950(58)
Total number built for ÓÅÊ  20
Diesel Motors  2x4 stroke FIAT 700110/1/6
Power 2X225HP
 Transmission Mechanic
Wheel arrangement Bo'Bo' / 2'2' (*)
Wheel diameter 0.9 m
Total length 25600 mm / 26400 mm (*)
Height 4050 mm
Width 2824 mm
Weight 40 t / 29 t (*)
Max. speed 95 km/h
(*) Data for the motorcar / trailers.

Schema of the DMU motorcoach:
