Corrado VR6 Custom Cold Air Intake
This cold air intake system can be bought for under $40 from the right
sources. Which of course would be eBay. A lot less expensive and just the
same as the Turn2 unit which sells for well over $200!!
-
Parts List:
-
Short ram air intake kit for 92-95 Honda Civic
-
Cone filter - may be supplied with intake kit
-
Stainless steel hose clamps
-
12" tie strap
-
First remove your stock air box assembly
-
Remove bolt for charcoal canister bracket
-
Pull charcoal canister up and remove bracket from canister
-
Put charcoal canister back into hole and set to the side - You may have
to lengthen hoses, I didnt have to
-
Remove screws on under side of vehicle for the plastic shielding and pull
down for better access
-
Drill or punch two holes in plastic shielding on the vertical angle to
secure charcoal canister with a tie strap
-
Plug nipple on intake tube or flatten it for securing with a screw later
on
-

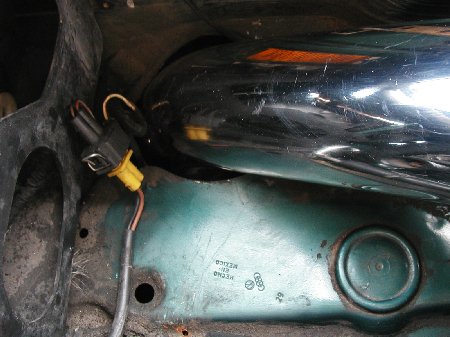

Install intake tube with the bend going into the hole first. Nipple goes
on bottom side of hole
-
Attach cone filter with stainless hose clamp
-

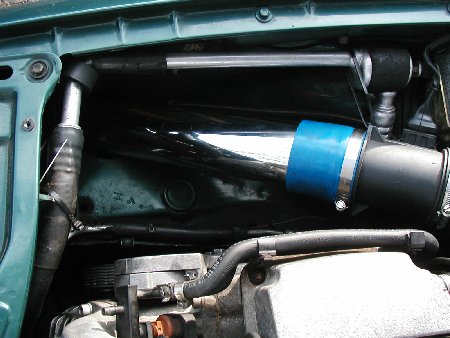

Attach intake tube to MAF sensor with supplied coupler from intake kit
and stainless hose clamps
-
Drill a small hole through the flattened nipple and screw into vehicle,
you will have to do this from under the vehicle
If you are missing the plastic guarding from the under side of your
car you will have to secure the charcoal canister to the vehicle. I do
not, however, recommened this modification without the plastic guarding
in place.
