*** Based on circuit design by  Dr. Josef Punchochar  , Research Gate Net

***  the  Positive-FeedBack Band-Pass Filter,   with single resistor f() control.
Negative FeedBack is Q2 and PFB BandPass V(out) is Q7

Example of circuit modification to handle Positive Boot-Strap Feedback via Multiple-Feedback Band Pass Filter.
Advantage is : Adjust f(0) via a single resistor R(freqAdj) +/- 500 Hz.

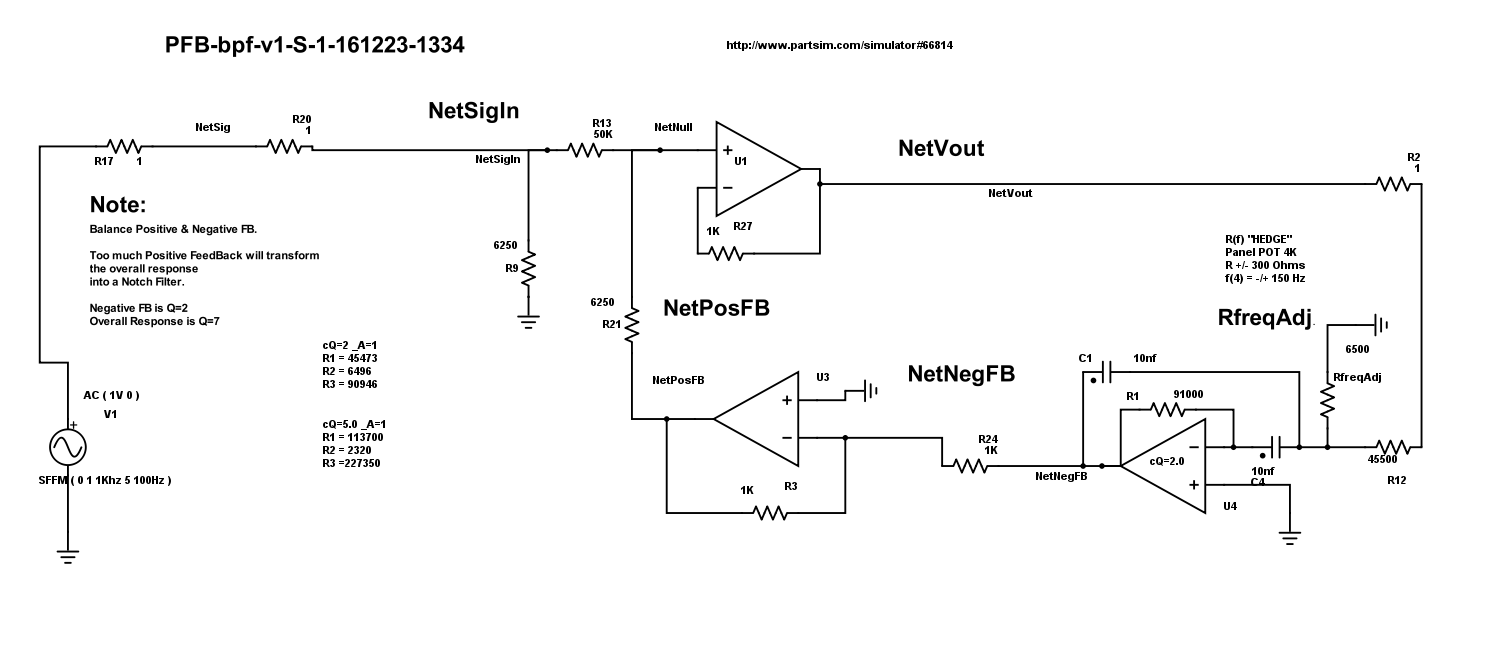

*** SPICE  circuit, Glen Ellis.
*** Example of circuit modification to handle Positive Boot-Strap Feedback via Multiple-Feedback Band Pass Filter.
*** Advantage : Adjust f(0) via a single resistor R(freqAdj) +/- 300 Hz.

*** Balance between Positive & Negative FB
*** else will transform circuit into a Notch Filter  or into an Oscillator.

V(out)   is   NetVout
f(0) = 700 Hz
FeedBack Q=2
Effecive  Q=7
BW=100 Hz

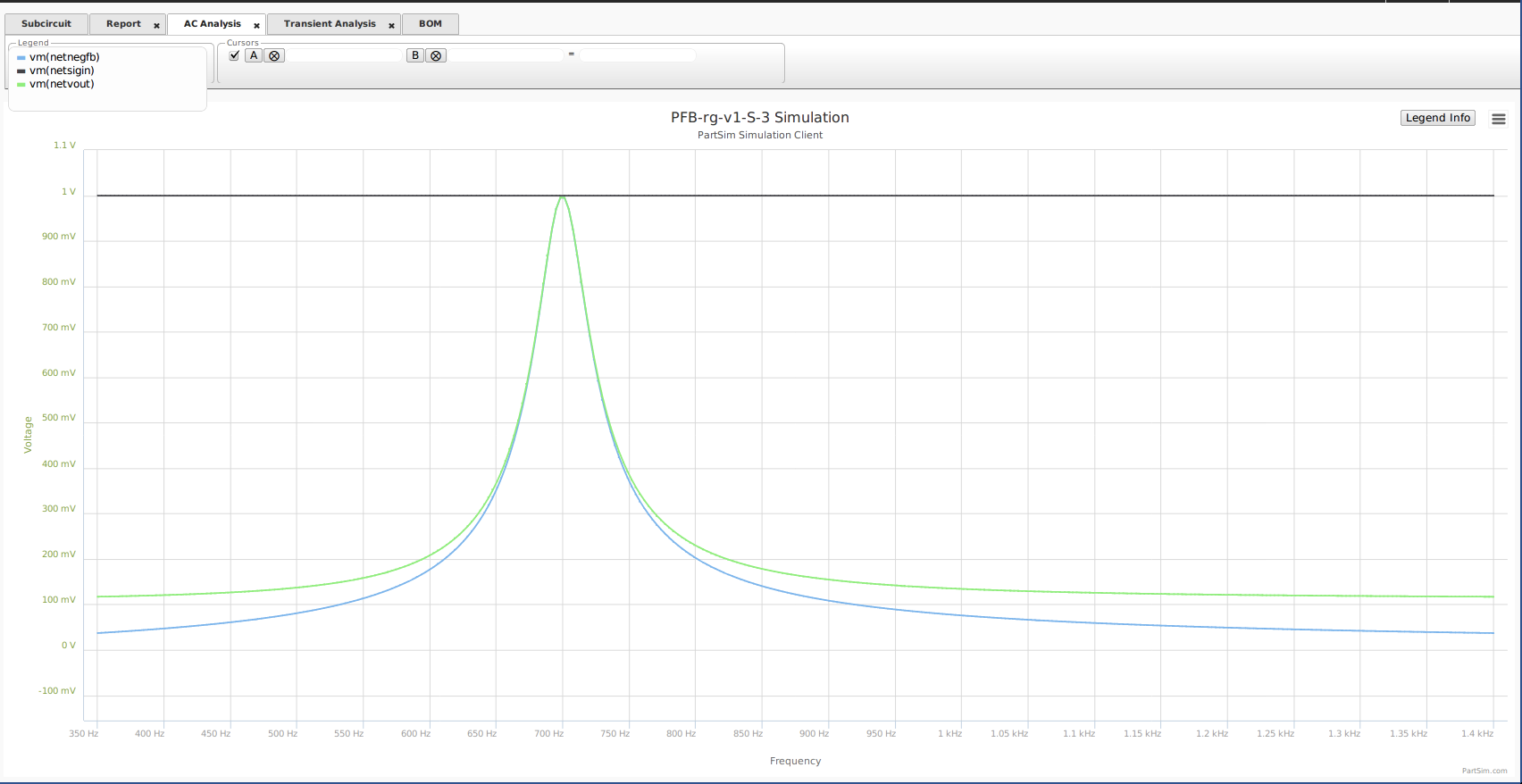

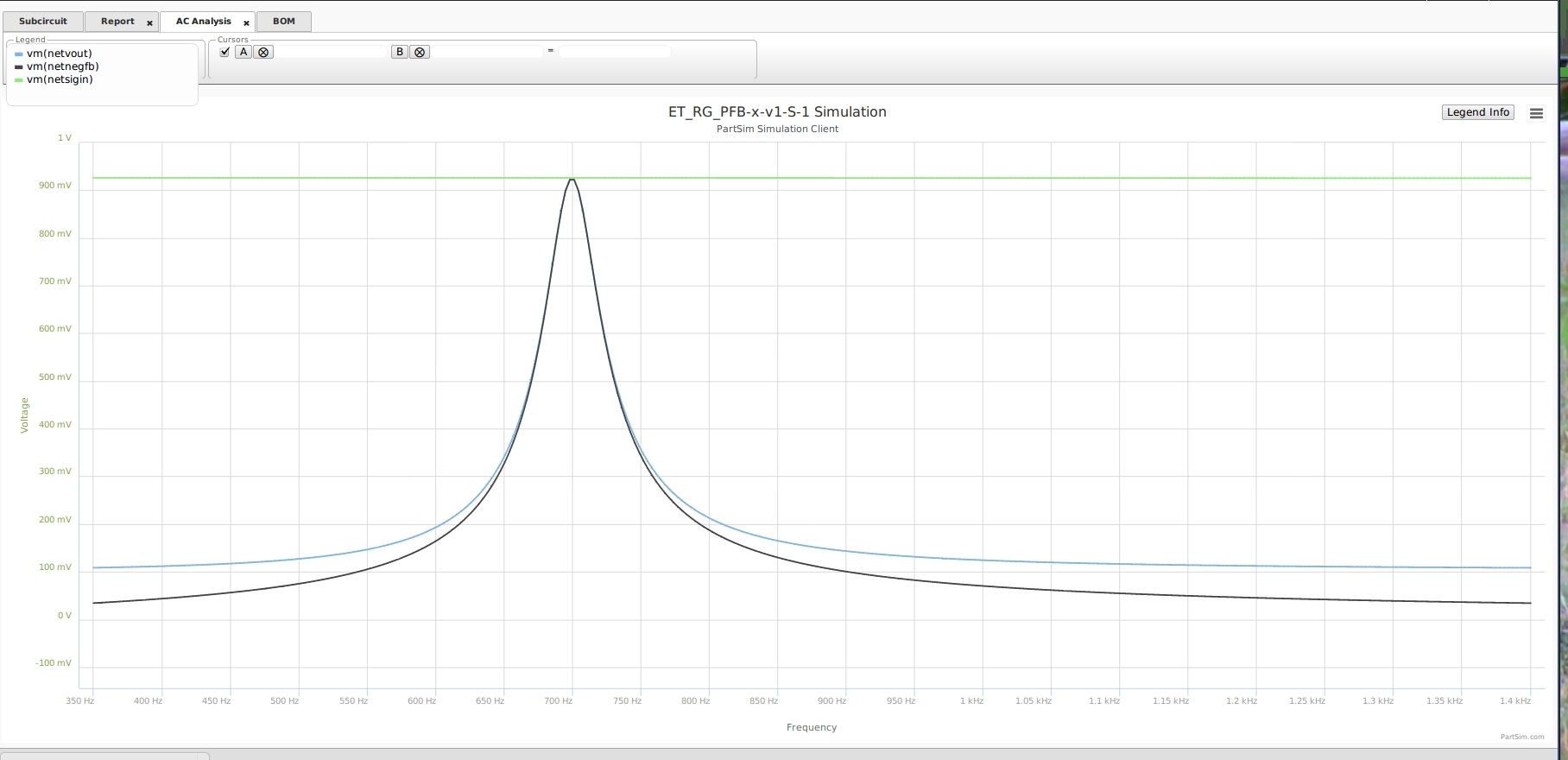

*** Original NetSigIn ( source signal ) is flat ( green ).
*** FeedBack   inverted ( blue ) (generated at Q=7)
*** Overall Response is Q=7  Positive BandPass  ( black ).

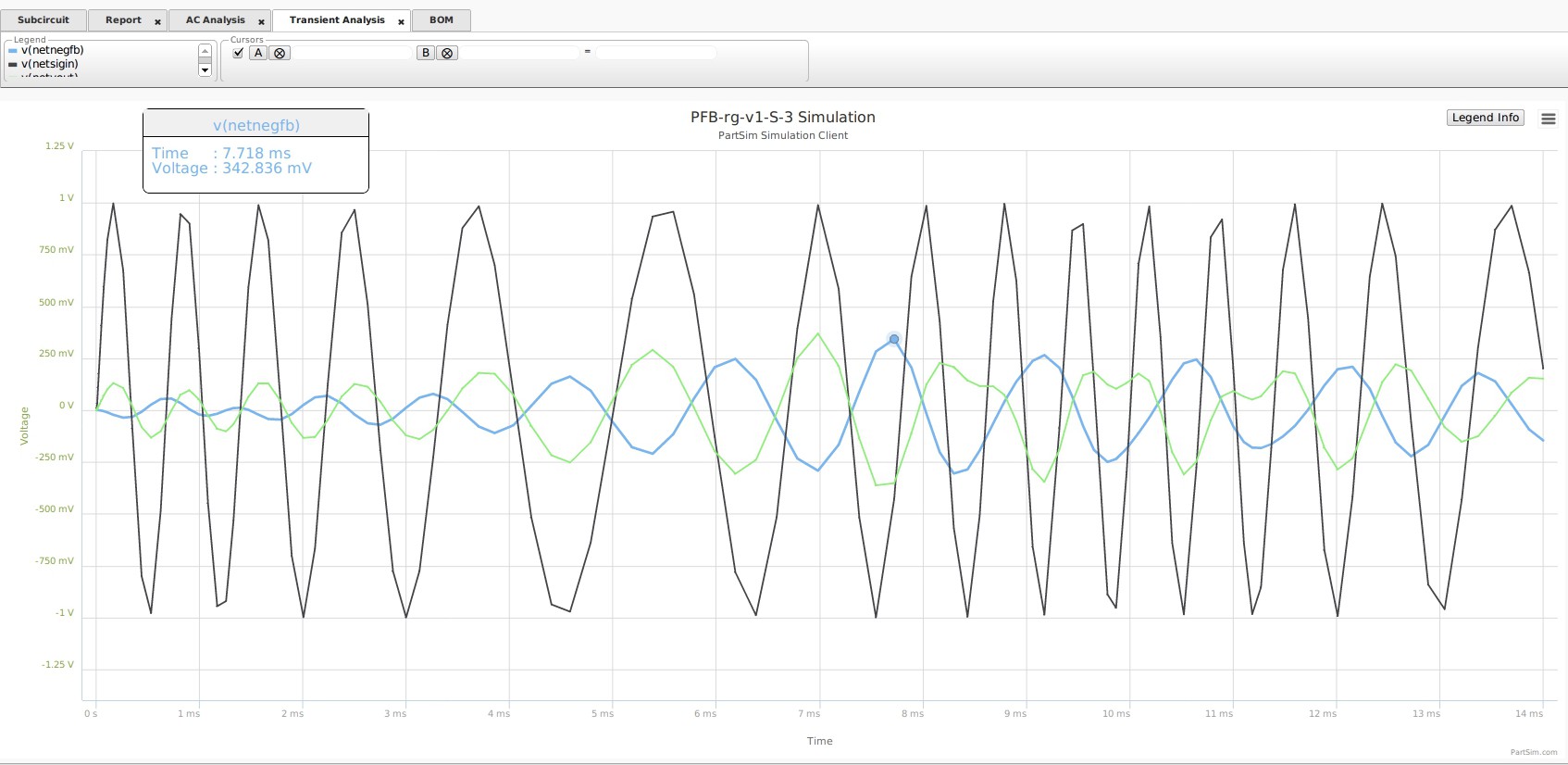

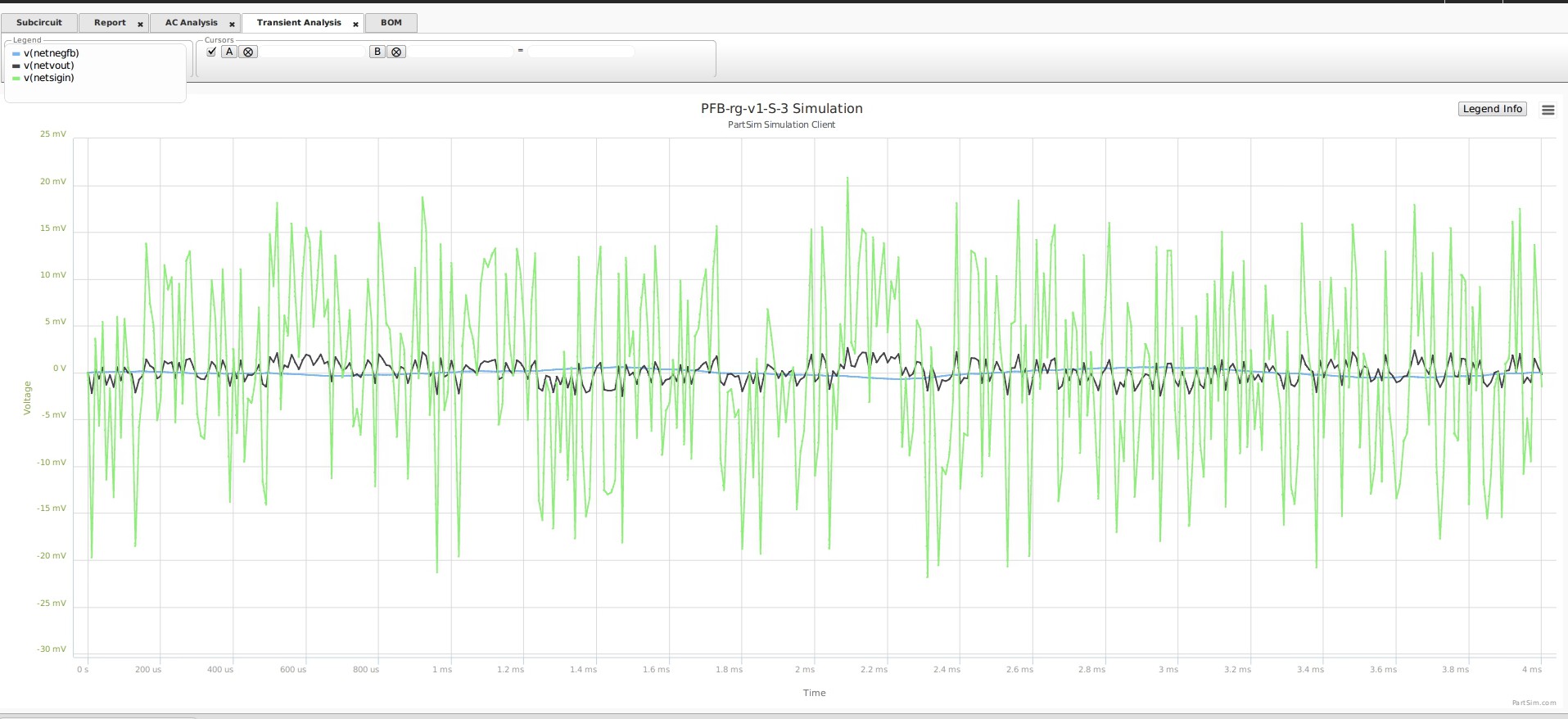

Transient Plot : Noise Input and Positive-FeedBack and f(700) filtered V(out) .   Green Noise, Black Positive-FeedBack,  Blue f(700) V(out) .

   Adjust f(0) via a Single Resistor R(freqAdj) +/- 300 Hz.
   Change f(0) via R6    [ R(freq) ].
   Initially  R(freq) is 6500 Ohm.      Adjust :    Up = lower f(0)   and    Down = higher f(0).

   In f(0) change,
   Gain will change as the minor ratio of R(in) / R(freq).
   Q  will change  as  squareroot of delta(f) change.
   But BW will remain same.
   ( Author uses this method for adjusting f(0) change of +/- 300 Hz. )

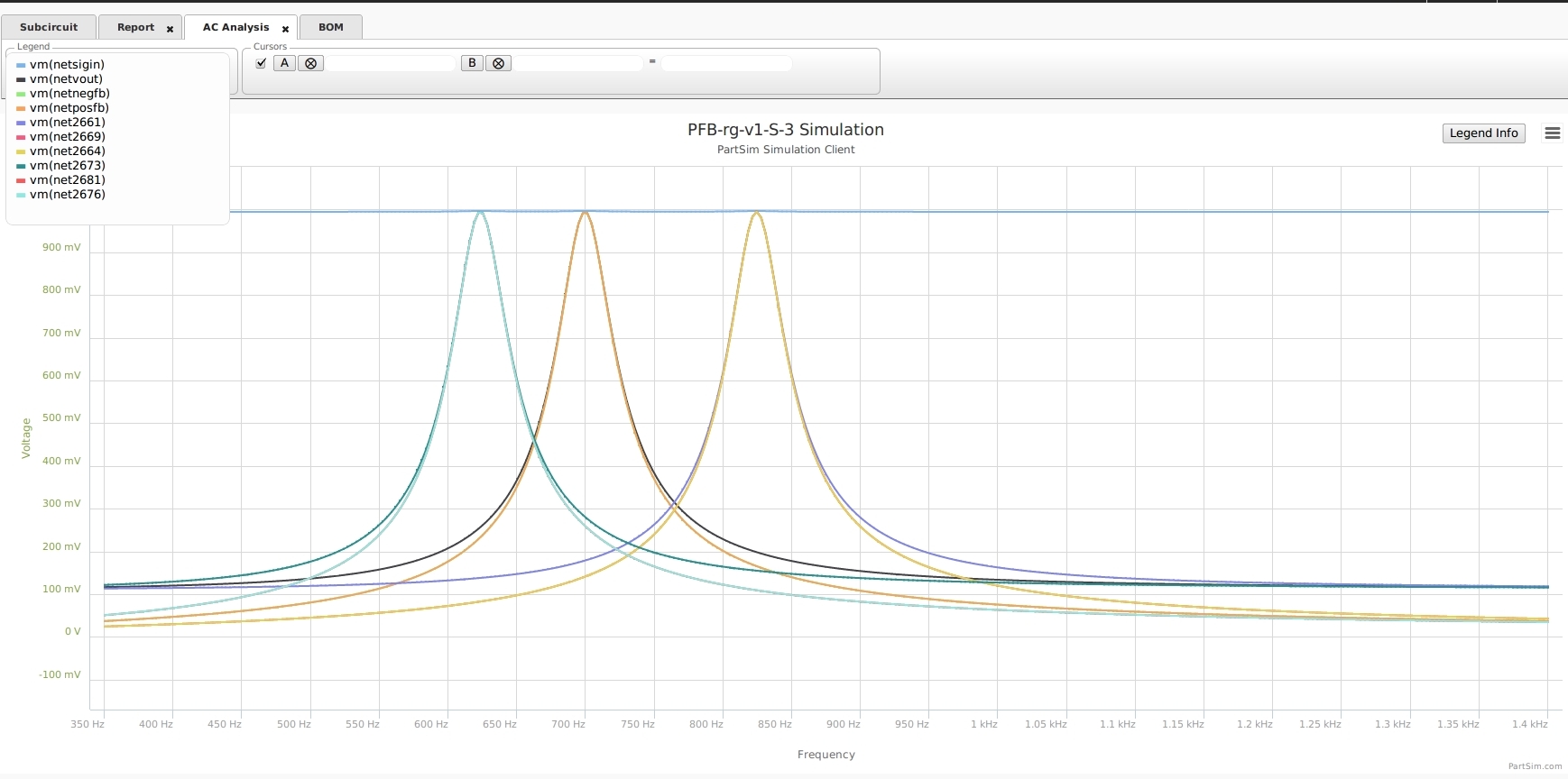

*** Demonstrating shifting f(0) via R(freqAdj)

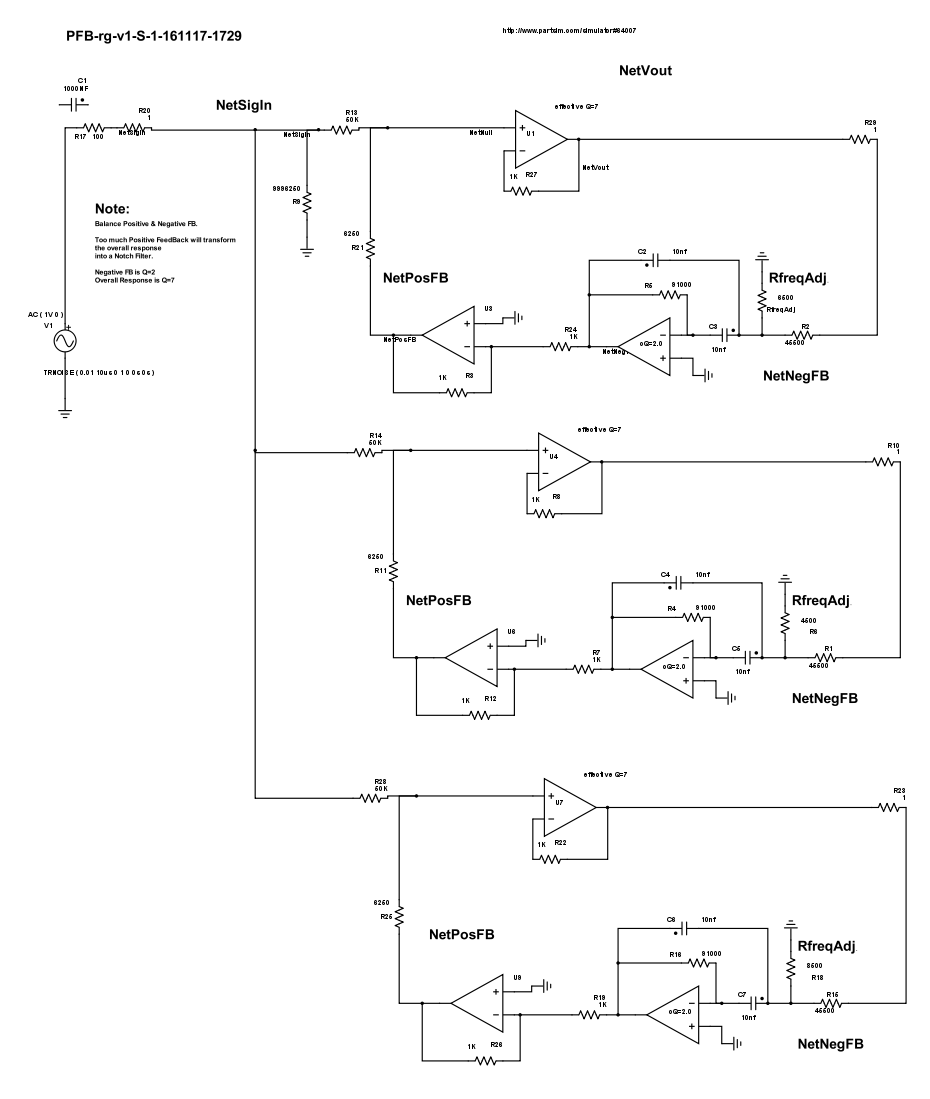

*** Demonstrating circuit to generate bode of shifting f(0) via R(freqAdj)

**************************************************************************************

****************************************************************************************************************************************************************************
